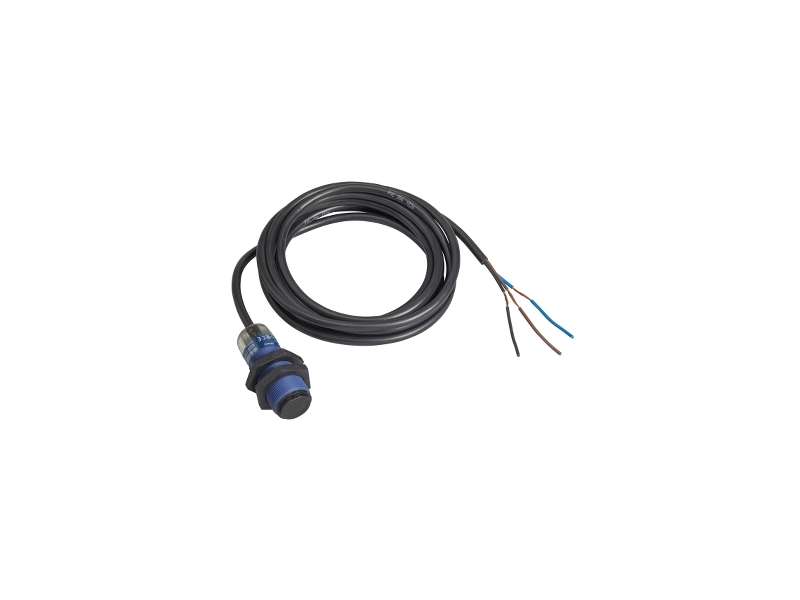

Schneider Electric Fotoelektrični senzor - XUB - predajnik - 12..24VDC - kabl 2m;XUB2AKSNL2T

Photoelectric sensors XU, XUB, emitter, 12...24 VDC, cable 2 m...

Brand: Schneider Electric
Product Code: XUB2AKSNL2T
Availability: Check availability

VAT-exclusive price: 5.053,00

VAT-inclusive price: 6.063,60

Qnt:

Description
Specification

Photoelectric sensors XU, XUB, emitter, 12...24 VDC, cable 2 m

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor transmitter
sensor name	XUB
sensor design	Cylindrical M18
detection system	Thru beam
material	Plastic
line of sight type	Axial
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	15 m thru beam need a receiver

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	20 m thru beam
output type	Solid state
add on input	Test by emission breaking
wire insulation material	PvR
status LED	1 LED (green) for supply on
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…36 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 500 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	35 mA no-load
maximum delay first up	15 ms
maximum delay response	1 ms
maximum delay recovery	1 ms
setting-up	Without sensitivity adjustment
diameter	18 mm
length	46 mm

Environment
product certifications	CSA UL CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529 IP67 double insulation conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	87.0 g
Package 1 Height	4.2 cm
Package 1 width	9.6 cm
Package 1 Length	13.2 cm
Unit Type of Package 2	S02
Number of Units in Package 2	22
Package 2 Weight	2.402 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
