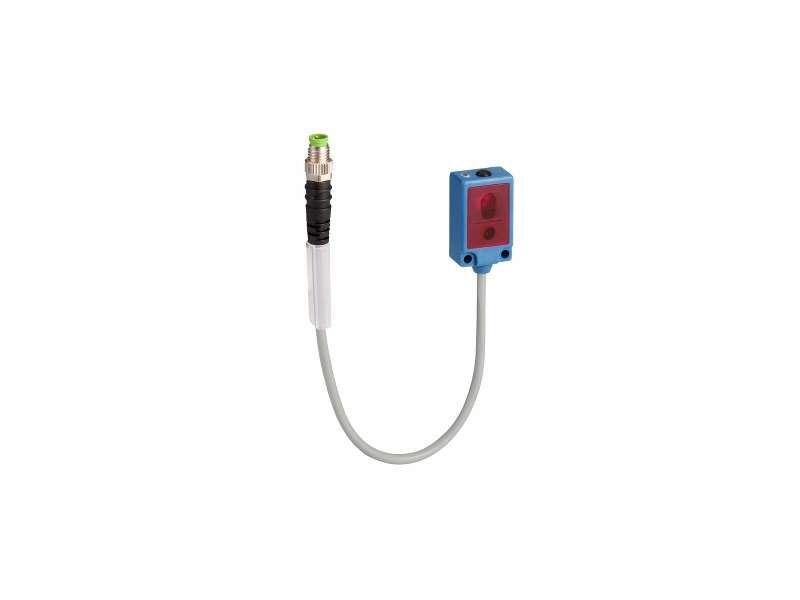

Schneider Electric Fotoelektrični senzor - XUY 989 - BGS - Sn 0.08m - 12..24VDC - M8;XUYPSCO989SP
Photoelectric sensors XU, XUY 989, BGS, Sn 0.08 m, 12...24 VDC, M8...
VAT-exclusive price: 20.341,00 |
VAT-inclusive price: 24.409,20 |
Photoelectric sensors XU, XUY 989, BGS, Sn 0.08 m, 12...24 VDC, M8
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUY |
| sensor design | Miniature |
| detection system | Diffuse with background suppression |
| material | Plastic |
| type of output signal | Discrete |
| supply circuit type | DC |
| wiring technique | 4-wire |
| discrete output type | PNP |
| discrete output function | 1 NO or 1 NC programmable |
| electrical connection | 1 male connector M8, 4 pins |
| product specific application | Conveyor system and access control series |
| emission | Red LED, pulsed |
| [Sn] nominal sensing distance |
1 m polarised reflex 4 m thru beam 0.08 m diffuse with background suppression 0.25 m diffuse with adjustable sensitivity |
| enclosure material | ABS |
|---|---|
| lens material | PMMA |
| cover material | PUR |
| pulse frequency | 6 kHz |
| output type | Solid state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| switching frequency | 500 Hz |
| maximum voltage drop |
<2 V at 100 mA (closed state) <1 V at 10 mA (closed state) |
| current consumption | < 25 mA no-load |
| maximum delay response | 1 ms |
| net weight | 0.044 kg |
| product certifications |
CE cULus |
|---|---|
| ambient air temperature for operation | 0…50 °C |
| ambient air temperature for storage | -20…80 °C |
| IP degree of protection |
IP65 conforming to IEC 60529 IP67 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 40.0 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 12.6 cm |
| Package 1 Length | 7.4 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 35 |
| Package 2 Weight | 1.776 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
