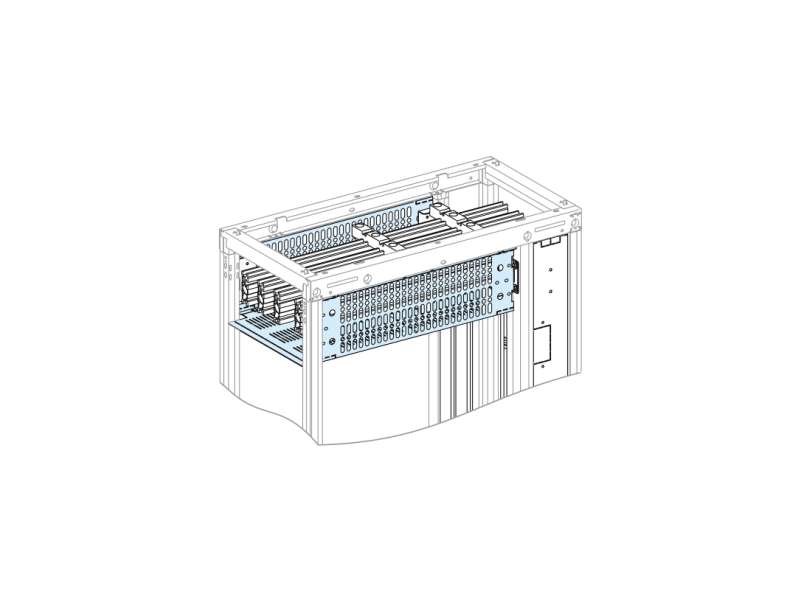

Schneider Electric Front and rear barriers, PrismaSeT P, form 2 horizontal partitioning, height 4M, for enclosures W400 D600; LVS04964
Front and rear barriers, PrismaSeT P, form 2 horizontal partitioning, height 4M, for enclosures W400 D600...
VAT-exclusive price: 14.619,00 |
VAT-inclusive price: 17.542,80 |
Front and rear barriers, PrismaSeT P, form 2 horizontal partitioning, height 4M, for enclosures W400 D600
| Range | PrismaSeT |
|---|---|
| range of product | PrismaSeT P |
| Product or component type | Partition |
| accessory / separate part category | Insulation accessory |
| Range compatibility |
PrismaSeT (PrismaSeT P) enclosure Linergy (Linergy BS) busbar Linergy (Linergy LGYE) busbar |
| Product specific application | To partition horizontal busbars |
| Cubicle partitioning form | Form 2 |
| Enclosure/cubicle width | 400 mm |
|---|---|
| Enclosure/cubicle description | Cubicle 4000A |
| installation description | Cubicle 4000A - width 400 mm, depth 600 mm |
| Product destination | For 600 mm deep framework |
| Cubicle depth | 600 mm |
| Height | 200 mm |
| Colour | White (RAL 9003) |
| Surface finish |
Powder coated Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Net weight | 2.64 kg |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 34.5 cm |
| Package 1 Length | 41.5 cm |
| Package 1 Weight | 2.515 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 44 |
| Package 2 Height | 73.0 cm |
| Package 2 Width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Package 2 Weight | 133.0 kg |
