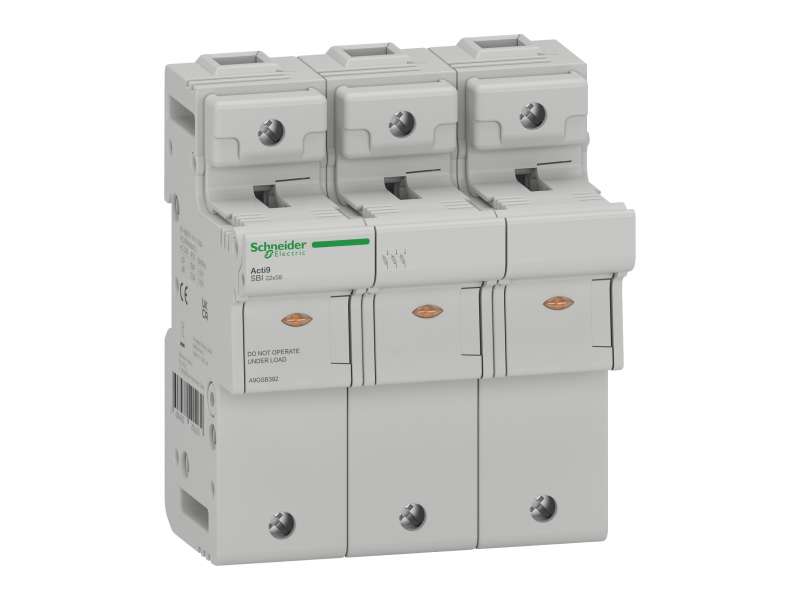

Schneider Electric Fuse Disconnector, Acti9 SBI, 3P, 125A, for fuse 22 x 58mm; A9GSB392
Fuse Disconnector, Acti9 SBI, 3P, 125A, for fuse 22 x 58mm; A9GSB392...
VAT-exclusive price: 10.362,00 |
VAT-inclusive price: 12.434,40 |
Fuse Disconnector, Acti9 SBI, 3P, 125A, for fuse 22 x 58mm; A9GSB392
| Range | Acti9 |
|---|---|
| Product name | Acti9 SBI |
| Product or component type | Fuse-disconnector |
| Device short name | SBI |
| Poles description | 3P |
| [In] rated current |
32 A 40 A 50 A 63 A 80 A 100 A 125 A |
|---|---|
| Fuse curve |
GG AM |
| Fuse size | 22 x 58 mm |
| [Ue] rated operational voltage | 690 V AC |
| Mounting support | 35 mm symmetrical DIN rail |
| Locking options description | Non padlockable |
| 9 mm pitches | 12 |
| Height | 126.5 mm |
| Width | 105 mm |
| Depth | 70 mm |
| Connections - terminals |
Screw clamp terminals1 cable(s) 2.5…25 mm² rigid Screw clamp terminals1 cable(s) 2.5…25 mm² flexible |
| Tightening torque | 3.5 N.m |
| Standards | IEC EN 60947-3 |
|---|---|
| Pollution degree | 3 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
-
Acti9 SBI A9GSB392
