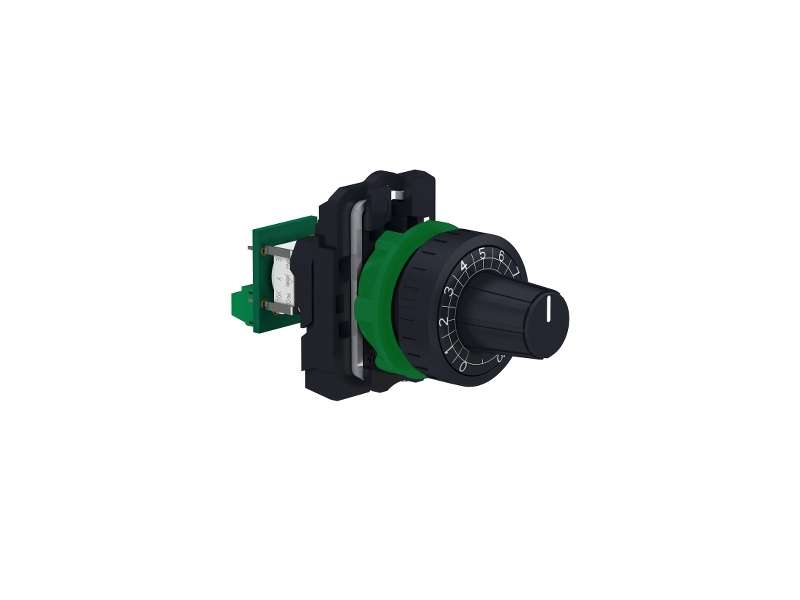

Schneider Electric Glava Ø22 + podnožje za montažu + potenciometar 10K;XB5AD912R10K

Harmony XB5, Complete potentiometer, plastic, Ø22, 10K...

Brand: Schneider Electric
Product Code: XB5AD912R10K
Availability: Check availability

VAT-exclusive price: 7.102,00

VAT-inclusive price: 8.522,40

Qnt:

Description
Specification

Harmony XB5, Complete potentiometer, plastic, Ø22, 10K

Main
range of product	Harmony XB5
product or component type	Potentiometer
device short name	XB5
head type	Standard
device presentation	Complete product

Complementary
bezel material	Dark grey plastic
mounting diameter	22 mm
product compatibility	Ø 6 mm shaft
sale per indivisible quantity	1
CAD overall width	30 mm
CAD overall height	42 mm
CAD overall depth	82 mm
net weight	0.048 kg
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-40…70 °C
electrical shock protection class	Class II conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529
NEMA degree of protection	NEMA 13 NEMA 4X
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection	IK03 conforming to IEC 50102
standards	CSA C22.2 No 14 UL 508 EN/IEC 60947-1
product certifications	BV CSA UL listed
shape of signaling unit head	Round
operator profile	Knurled knob, with (white)
[Us] rated supply voltage	<= 42 V DC <= 30 V AC
rated power in W	1 W at 70 °C
precision of internal conversion resistor	+-10%
potentiometer characteristic	Linear
mechanical durability	50000 cycles
ohmic value	10000 Ohm
material	Cermet
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
main group	Potentiometer
group of product	Potentiometer knurled knob
colour of marking	White

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	59.0 g
Package 1 Height	4.2 cm
Package 1 width	5.6 cm
Package 1 Length	8.4 cm
Unit Type of Package 2	S02
Number of Units in Package 2	40
Package 2 Weight	2.678 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Package 3 Height	77
