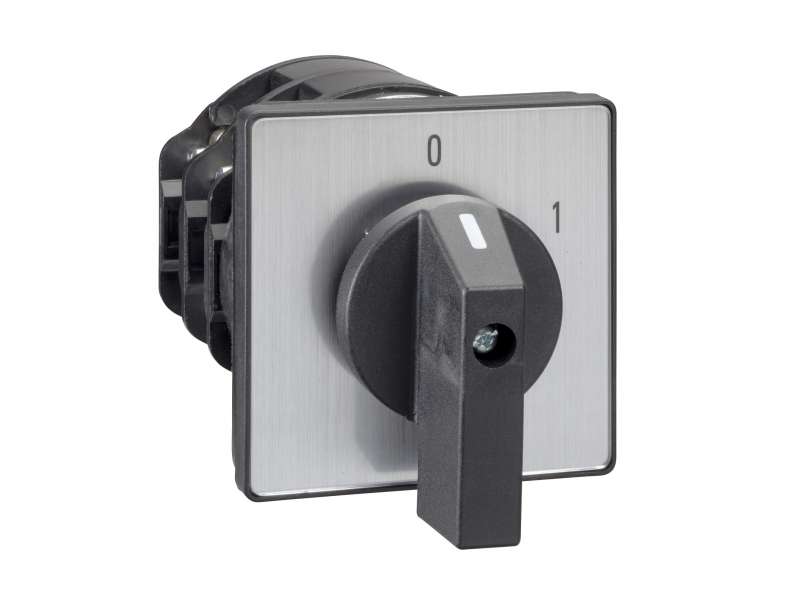

Schneider Electric Grebenasti prekidač - 3P - 60° - 150 A - vijčana montaža; K150C003AP
cam switch - 3-pole - 60° - 150 A - screw mounting...
VAT-exclusive price: 26.597,91 |
VAT-inclusive price: 31.917,49 |
cam switch - 3-pole - 60° - 150 A - screw mounting
| range of product |
Harmony K
|
|
|---|---|---|
| product or component type |
Complete cam switch
|
|
| component name |
K150
|
|
| [Ith] conventional free air thermal current |
150 A
|
|
| product mounting |
Front mounting
|
|
| fixing mode |
4 holes
|
|
| cam switch head type |
With front plate 88 x 88 mm
|
|
| type of operator |
Black handle
|
|
| rotary handle padlocking |
Without
|
|
| presentation of legend |
With metallic legend, 0 - 1 black marking
|
|
| cam switch function |
Switch
|
|
| return |
Without
|
|
| off position |
With Off position
|
|
| poles description |
3P
|
|
| switching positions |
Right: 0° - 60°
|
|
| IP degree of protection |
IP40 conforming to IEC 529
IP40 conforming to NF C 20-010 |
| switching angle |
60 °
|
|
|---|---|---|
| [Ui] rated insulation voltage |
690 V (pollution degree 3) conforming to EN 60947-1
690 V (pollution degree 3) conforming to IEC 60947-1 |
|
| rated operational power in W |
11000 W AC-23A, 110 V 1 phase conforming to EN/IEC 60947-3
11000 W AC-3, 220/240 V 1 phase conforming to EN/IEC 60947-3 18500 W AC-3, 380/440 V 1 phase conforming to EN/IEC 60947-3 22000 W AC-23A, 220/240 V 1 phase conforming to EN/IEC 60947-3 22000 W AC-3, 220/240 V 3 phases conforming to EN/IEC 60947-3 30000 W AC-3, 660/690 V 3 phases conforming to EN/IEC 60947-3 37000 W AC-23A, 220/240 V 3 phases conforming to EN/IEC 60947-3 37000 W AC-23A, 380/440 V 1 phase conforming to EN/IEC 60947-3 37000 W AC-3, 380/440 V 3 phases conforming to EN/IEC 60947-3 5500 W AC-3, 110 V 1 phase conforming to EN/IEC 60947-3 55000 W AC-23A, 660/690 V 3 phases conforming to EN/IEC 60947-3 75000 W AC-23A, 380/440 V 3 phases conforming to EN/IEC 60947-3 |
|
| [Ie] rated operational current AC |
150 A AC-21A conforming to EN/IEC 60947-3
|
|
| short-circuit current |
25000 A
|
|
| short-circuit protection |
200 A cartridge fuse, type gG
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 947-1
6 kV conforming to IEC 947-1 |
|
| contact operation |
Slow-break
|
|
| positive opening |
With
|
|
| electrical connection |
Captive screw clamp terminals flexible, clamping capacity: 1 x 50 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 70 mm² |
|
| tightening torque |
2.5 N.m
|
|
| switching capacity in mA |
150000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
150000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms) 150000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms) 150000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms) 150000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms) 150000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms) 150000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms) 150000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms) 150000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms) 50000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms) 50000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms) 50000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms) |
|
| mechanical durability |
300000 cycles
|
|
| CAD overall width |
88 mm
|
|
| CAD overall height |
88 mm
|
|
| CAD overall depth |
140 mm
|
|
| net weight |
0.79 kg
|
| standards |
EN/IEC 60947-3
|
|
|---|---|---|
| product certifications |
CULus 240 V 15 hp 1 phase
CULus 240 V 25 hp 3 phases CULus 480 V 40 hp 3 phases CULus 120 V 7.5 hp 1 phase |
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
Class II conforming to NF C 20-030 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
807 g
|
|
| Package 1 Height |
9.7 cm
|
|
| Package 1 width |
9.7 cm
|
|
| Package 1 Length |
20 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
4.6 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Harmony K K150C003AP
