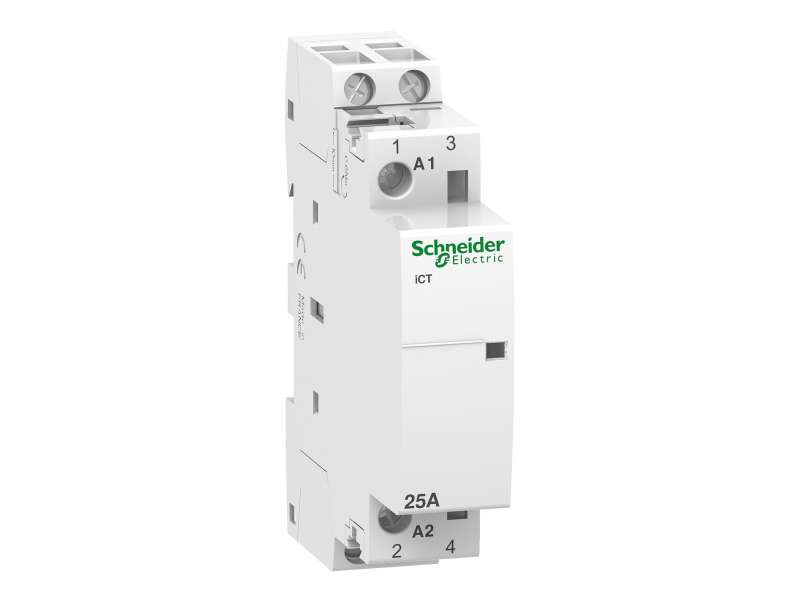

Name: Schneider Electric ICT 25A 2NO 24V 50Hz kontaktor;A9C20132
Brand: Schneider Electric
SKU: A9C20132
Price: 4557.60 RSD
Availability: OutOfStock

0 Compare products

0 View cart

+381 18 51 63 64

Schneider Electric ICT 25A 2NO 24V 50Hz kontaktor;A9C20132

ICT 25A 2NO 24V 50Hz contactor...

Brand: Schneider Electric
Product Code: A9C20132
Availability: Check availability

VAT-exclusive price: 3.798,00

VAT-inclusive price: 4.557,60

Qnt:

ICT 25A 2NO 24V 50Hz contactor

Main
range of product	Acti 9
product name	Acti 9 iCT
product or component type	Contactor
device short name	ICT
device application	Motor-heating-lighting
Poles	2P
[Ie] rated operational current	25 A AC-7A 8.5 A AC-7B
pole contact composition	2 NO
network type	AC
control type	Remote control
[Uc] control circuit voltage	24 V AC 50 Hz

Complementary
network frequency	50 Hz
[Ue] rated operational voltage	250 V AC 50 Hz
maximum power	1.3 W at 250 V AC
[Ui] rated insulation voltage	500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	4 kV
control signal type	Maintained
switching frequency	100 switching operations/day
local signalling	Action indicator
hold-in power consumption in VA	3.8 VA
inrush power in VA	15 VA
mounting mode	Clip-on
mounting support	35 mm symmetrical DIN rail
9 mm pitches	2
height	81 mm
width	18 mm
depth	68.5 mm
colour	White
mechanical durability	1000000 cycles
electrical durability	100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B 30000 cycles IEC/EN 61095 50 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
connections - terminals	Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible
tightening torque	Control circuit: 0.8 N.m Power circuit: 0.8 N.m
product compatibility	IACTp IACTc IACTs IATEt
compatibility code	ICT
market segment	Residential Small commercial

Environment
standards	IEC/EN 61095
noise level	30 dB
heat dissipation	1.3 W at 50/60 Hz
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
pollution degree	2
tropicalisation	2 conforming to EN 60947-4-1 2 conforming to EN 61095 2 conforming to IEC 1095
relative humidity	95 % at 55 °C
operating altitude	2000 m
ambient air temperature for operation
