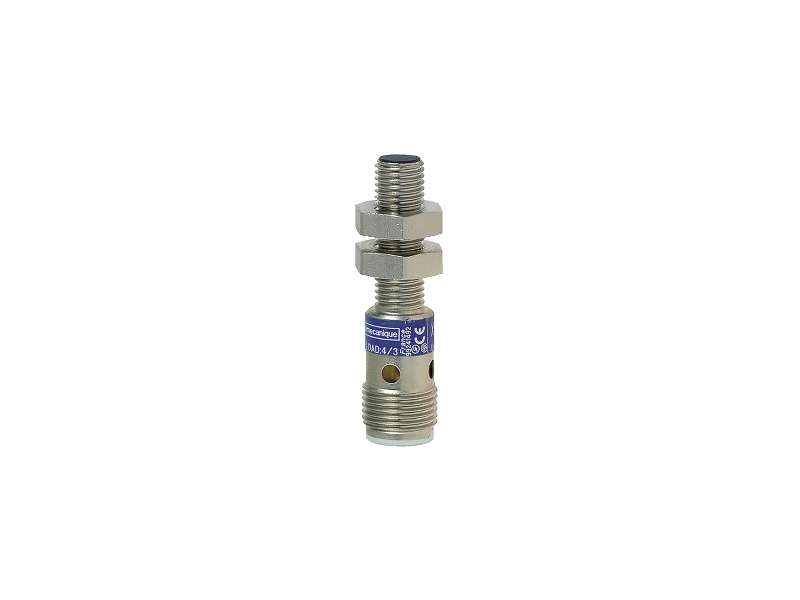

Schneider Electric Induktivni senzor XS1 M12 - D48mm - mesing - Sn2mm - 12..24VDC - M12;XS1N12PC410D
inductive sensor XS1 M12, L48mm, brass, Sn2mm, 12..24VDC, M12...
VAT-exclusive price: 4.995,00 |
VAT-inclusive price: 5.994,00 |
inductive sensor XS1 M12, L48mm, brass, Sn2mm, 12..24VDC, M12
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| device application | Mobile equipment |
| sensor name | XS1 |
| sensor design | Cylindrical M12 |
| size | 50 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| type of output signal | Discrete |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 2 mm |
| discrete output function | 1 NO + 1 NC |
| output circuit type | DC |
| discrete output type | PNP |
| electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP69K conforming to DIN 40050 IP65 conforming to IEC 60529 IP67 |
| safety level |
SIL 2 conforming to EN/IEC 61508 PL = d conforming to EN/ISO 13849-1 SILCL 2 conforming to IEC 62061 |
|---|---|
| safety reliability data |
MTTFd = 1810 years PFHd = 62.9E-9 1/h SFF = 92 % DC = 74 % with appropriate safety controller |
| service life | 20 year(s) |
| thread type | M12 x 1 |
| detection face | Frontal |
| front material | PPS |
| enclosure material | Nickel plated brass |
| operating zone | 0…1.6 mm |
| differential travel | 1...15% of Sr |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 9…36 V DC |
| switching frequency | <= 5000 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | 0...10 mA no-load |
| maximum delay first up | 5 ms |
| maximum delay response | 0.1 ms |
| maximum delay recovery | 0.1 ms |
| marking | CE |
| threaded length | 31 mm |
| length | 50 mm |
| net weight | 0.02 kg |
| standards |
IEC 62061 EN/ISO 13849-1 |
|---|---|
| product certifications |
E2 CSA TÜV UL |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 34.0 g |
| Package 1 Height | 1.7 cm |
| Package 1 width | 14.8 cm |
| Package 1 Length | 20.6 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 1.1 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 4.2 cm |
| Warranty | 18 months |
|---|
