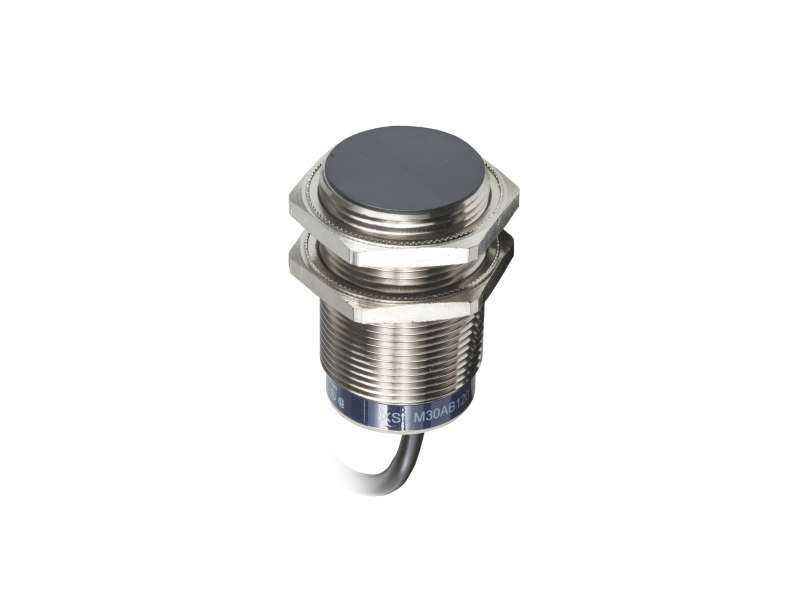

Schneider Electric Induktivni senzor XS1 M30 - D50mm - mesing - Sn10mm - 12..24VDC - kabl 2m; XS1M30AB120
inductive sensor XS1 M30 - L50mm - brass - Sn10mm - 12..24VDC - cable 2m...
VAT-exclusive price: 11.258,00 |
VAT-inclusive price: 13.509,60 |
inductive sensor XS1 M30 - L50mm - brass - Sn10mm - 12..24VDC - cable 2m
| range of product |
OsiSense XS
|
|
|---|---|---|
| series name |
Application
|
|
| sensor type |
Inductive proximity sensor
|
|
| electrical circuit type |
Analog output
|
|
| sensor name |
XS1
|
|
| sensor design |
Cylindrical M30
|
|
| size |
54 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Flush mountable
|
|
| material |
Metal
|
|
| type of output signal |
Analogue
|
|
| wiring technique |
2-wire
|
|
| [Sn] nominal sensing distance |
10 mm
|
|
| discrete output function |
1 NC
|
|
| output circuit type |
DC
|
|
| analogue output range |
4...20 mA
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
12...24 V DC
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
|
| thread type |
M30 x 1.5
|
|
|---|---|---|
| detection face |
Frontal
|
|
| front material |
PPS
|
|
| enclosure material |
Nickel plated brass
|
|
| operating zone |
1…10 mm
|
|
| repeat accuracy |
<= 3% of Sr
|
|
| linearity error |
+/- 2 mA
|
|
| cable composition |
3 x 0.34 mm²
|
|
| wire insulation material |
PvR
|
|
| supply voltage limits |
10…36 V DC
|
|
| switching frequency |
<= 300 Hz
|
|
| current consumption |
4 mA no-load
|
|
| maximum output current drift |
10 %
|
|
| marking |
CE
|
|
| threaded length |
42 mm
|
|
| height |
30 mm
|
|
| length |
50 mm
|
|
| net weight |
0.2 kg
|
| product certifications |
CSA
UL |
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
| Package 1 Weight |
180 g
|
|
|---|---|---|
| Package 2 Weight |
196 g
|
|
| Package 3 Weight |
2.505 kg
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
OsiSense XS & XT XS1M30AB120
