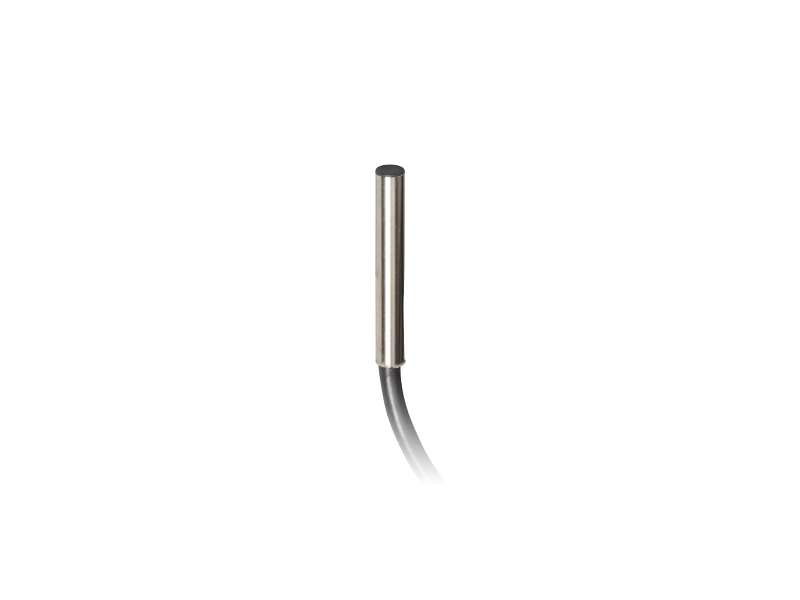

Schneider Electric Induktivni senzor XS1 Ø4 - D41mm - nerđajući čelik - Sn0.8mm - 5..24VDC - M8;XS1L04PA311S
Inductive proximity sensors XS, inductive sensor XS1 Ø4, L42mm, stainless, Sn0.8mm, 5..24VDC, M8...
VAT-exclusive price: 17.147,00 |
VAT-inclusive price: 20.576,40 |
Inductive proximity sensors XS, inductive sensor XS1 Ø4, L42mm, stainless, Sn0.8mm, 5..24VDC, M8
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| device application | - |
| sensor name | XS1 |
| sensor design | Cylindrical Ø 4 mm plain |
| size | 42 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Stainless steel |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 0.8 mm |
| discrete output function | 1 NO |
| output circuit type | DC |
| discrete output type | PNP |
| electrical connection | Male connector M8, 3 pins |
| [Us] rated supply voltage | 5...24 V DC |
| switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| detection face | Frontal |
|---|---|
| front material | PPS |
| enclosure material | Stainless steel 303 |
| operating zone | 0…0.6 mm |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 5…30 V DC |
| switching frequency | <= 5000 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 5 ms |
| maximum delay response | 1 ms |
| maximum delay recovery | 1 ms |
| marking | CE |
| threaded length | 0 mm |
| length | 42 mm |
| net weight | 0.01 kg |
| product certifications |
UL CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 21.0 g |
| Package 1 Height | 4.5 cm |
| Package 1 width | 6.5 cm |
| Package 1 Length | 9.5 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 20 |
| Package 2 Weight | 645.0 g |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 15 cm |
| Warranty | 18 months |
|---|
