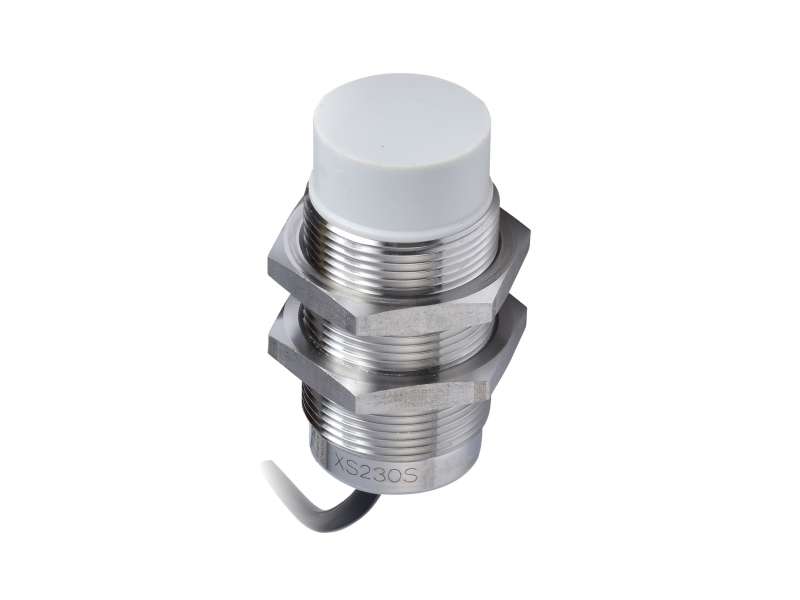

Schneider Electric Induktivni senzor XS2 M30 - D63mm - nerđajući čelik- Sn22mm-24..240VAC/DC - D2m; XS230SAMAL2
inductive sensor XS2 M30 - L63mm - stainless - Sn22mm - 24..240VAC/DC - L2m...
VAT-exclusive price: 5.588,00 |
VAT-inclusive price: 6.705,60 |
inductive sensor XS2 M30 - L63mm - stainless - Sn22mm - 24..240VAC/DC - L2m
| range of product |
OsiSense XS
|
|
|---|---|---|
| series name |
Application
|
|
| sensor type |
Inductive proximity sensor
|
|
| device application |
Food and beverage
|
|
| market segment |
Pharmaceutical
|
|
| sensor name |
XS2
|
|
| sensor design |
Cylindrical M30
|
|
| size |
63 mm
|
|
| body type |
Fixed
|
|
| detector flush mounting acceptance |
Non flush mountable
|
|
| material |
Stainless steel
|
|
| type of output signal |
Discrete
|
|
| wiring technique |
2-wire
|
|
| [Sn] nominal sensing distance |
22 mm
|
|
| discrete output function |
1 NO
|
|
| output circuit type |
AC/DC
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| [Us] rated supply voltage |
24...240 V AC 50/60 Hz
24...240 V DC |
|
| switching capacity in mA |
5...200 mA DC
5...300 mA AC |
|
| IP degree of protection |
IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050 |
| thread type |
M30 x 1.5
|
|
|---|---|---|
| detection face |
Frontal
|
|
| front material |
PPS
|
|
| enclosure material |
Stainless steel 316 L
|
|
| sensing range |
> 15...40 mm
|
|
| operating zone |
0…17.6 mm
|
|
| differential travel |
1...15% of Sr
|
|
| cable composition |
2 x 0.34 mm²
|
|
| wire insulation material |
PVC
|
|
| status LED |
Output state: 1 LED (yellow)
|
|
| supply voltage limits |
20…264 V AC/DC
|
|
| maximum residual current |
0.8 mA open state
|
|
| switching frequency |
<= 25 Hz AC
<= 300 Hz DC |
|
| maximum voltage drop |
<5.5 V (closed)
|
|
| maximum delay first up |
30 ms
|
|
| maximum delay response |
0.5 ms
|
|
| maximum delay recovery |
2 ms
|
|
| marking |
CE
|
|
| threaded length |
41 mm
|
|
| length |
63 mm
|
|
| net weight |
0.205 kg
|
| product certifications |
UL
CCC CSA |
|
|---|---|---|
| ambient air temperature for operation |
-25…85 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27
|
| Package 1 Weight |
186 g
|
|
|---|---|---|
| Package 2 Weight |
194 g
|
|
| Package 3 Weight |
2.249 kg
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
OsiSense XS & XT XS230SAMAL2
