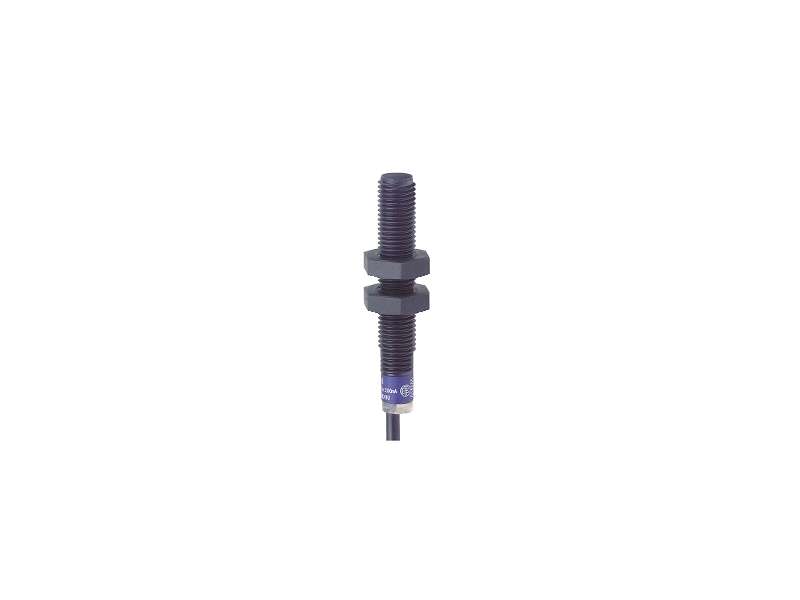

Schneider Electric Induktivni senzor XS4 M12 - L52mm - PPS - Sn4mm - 24..240VAC/DC - kabl 2m;XS4P12MB230
Inductive proximity sensors XS, Inductive sensor XS4 M12, L52mm, PPS, Sn4mm, 24...240VAC/DC, cable 2 m...
VAT-exclusive price: 7.476,00 |
VAT-inclusive price: 8.971,20 |
Inductive proximity sensors XS, Inductive sensor XS4 M12, L52mm, PPS, Sn4mm, 24...240VAC/DC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS4 |
| sensor design | Cylindrical M12 |
| size | 52 mm |
| body type | Fixed |
| detector flush mounting acceptance | Non flush mountable |
| material | Plastic |
| type of output signal | Discrete |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 4 mm |
| discrete output function | 1 NC |
| output circuit type | AC/DC |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| switching capacity in mA | 5...200 mA AC/DC |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| thread type | M12 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | PPS |
| operating zone | 0…3.2 mm |
| differential travel | 1...15% of Sr |
| cable composition | 2 x 0.34 mm² |
| wire insulation material | PvR |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 20…264 V AC/DC |
| maximum residual current | 0.6 mA open state |
| switching frequency |
<= 25 Hz AC <= 3000 Hz DC |
| maximum voltage drop | <5.5 V (closed) |
| maximum delay first up | 40 ms |
| maximum delay response | 0.2 ms |
| maximum delay recovery | 0.2 ms |
| marking | CE |
| threaded length | 42 mm |
| height | 12 mm |
| length | 52 mm |
| net weight | 0.065 kg |
| product certifications |
UL CSA CCC Ecolab |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 60.0 g |
| Package 1 Height | 2.4 cm |
| Package 1 width | 14.6 cm |
| Package 1 Length | 15.7 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 1.682 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 15 cm |
| Warranty | 18 months |
|---|
