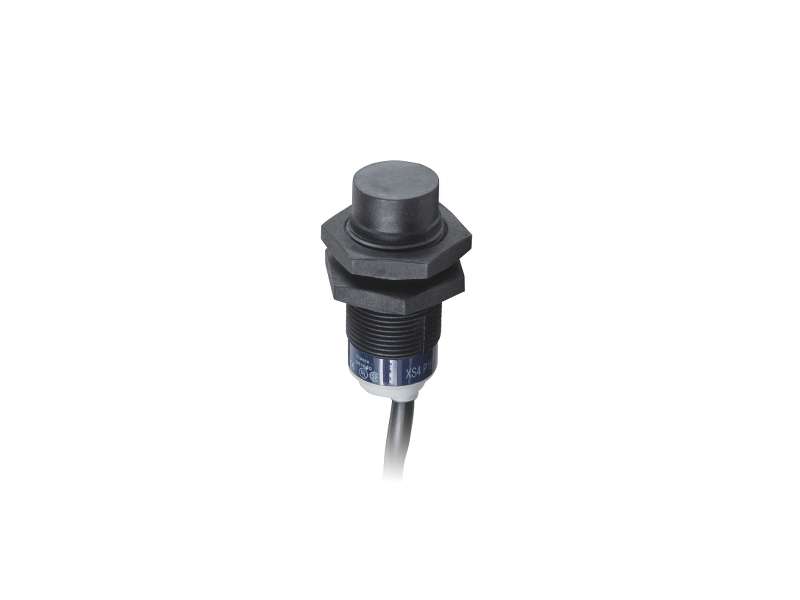

Schneider Electric Induktivni senzor XS4 M18 - D41mm - PBT - Sn8mm - 24..48VDC - kabl 2m;XS4P18AB110
Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 24...48 VDC, cable 2 m...
VAT-exclusive price: 9.722,00 |
VAT-inclusive price: 11.666,40 |
Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 24...48 VDC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | Application |
| sensor type | Inductive proximity sensor |
| electrical circuit type | Analog output |
| sensor name | XS4 |
| sensor design | Cylindrical M18 |
| size | 41 mm |
| body type | Fixed |
| detector flush mounting acceptance | Non flush mountable |
| material | Plastic |
| type of output signal | Analogue |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 8 mm |
| output circuit type | DC |
| analogue output range | 0...10 V |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 24...48 V DC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M18 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | PBT |
| operating zone | 0.8…8 mm |
| repeat accuracy | <= 3% of Sr |
| linearity error | +/- 2 mA |
| cable composition | 3 x 0.34 mm² |
| wire insulation material | PvR |
| supply voltage limits | 15…58 V DC |
| switching frequency | <= 500 Hz |
| current consumption | 4 mA no-load |
| maximum output current drift | 10 % |
| marking | CE |
| threaded length | 26 mm |
| height | 18 mm |
| length | 41 mm |
| net weight | 0.08 kg |
| product certifications |
UL CCC CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 4.1 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30 cm |
| Package 2 Height | 30 cm |
| Package 2 Weight | 4.07 kg |
| Package 3 Height | 30 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Height | 13.2 cm |
| Package 1 Weight | 81.0 g |
| Number of Units in Package 2 | 44 |
| Unit Type of Package 2 | S03 |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
