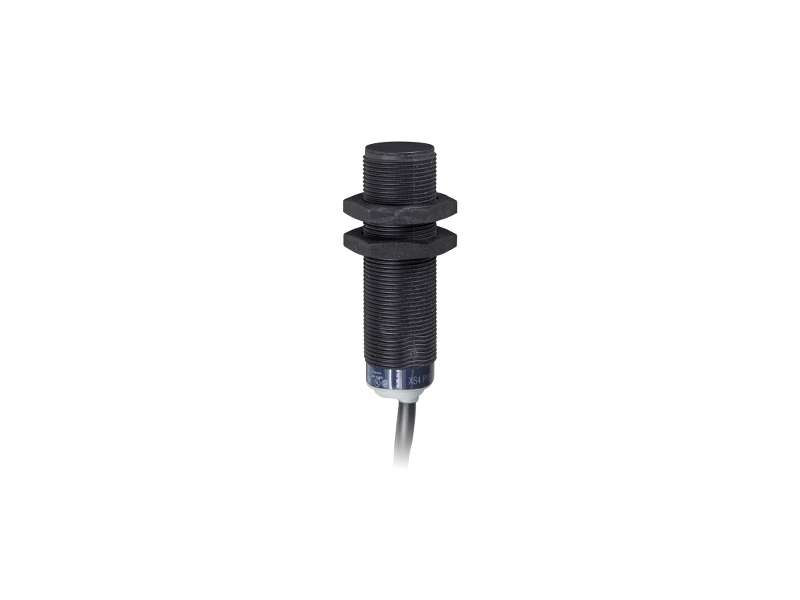

Schneider Electric Induktivni senzor XS4 M18 - D70mm - PPS - Sn8mm - 12..24VDC - M12;XS4P18KP340D
Inductive proximity sensors XS, inductive sensor XS4 M18, L70mm, PPS, Sn8mm, 12...24 VDC, M12...
VAT-exclusive price: 5.534,00 |
VAT-inclusive price: 6.640,80 |
Inductive proximity sensors XS, inductive sensor XS4 M18, L70mm, PPS, Sn8mm, 12...24 VDC, M12
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS4 |
| sensor design | Cylindrical M18 |
| size | 70 mm |
| body type | Fixed |
| detector flush mounting acceptance | Non flush mountable |
| material | Plastic |
| type of output signal | Discrete |
| wiring technique | 4-wire |
| [Sn] nominal sensing distance | 8 mm |
| discrete output function | 1 NO or 1 NC programmable |
| output circuit type | DC |
| discrete output type | PNP and NPN |
| electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M18 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | PPS |
| operating zone | 0…6.4 mm |
| differential travel | 1...15% of Sr |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 10…36 V DC |
| switching frequency | <= 2000 Hz |
| maximum voltage drop | <2.6 V (closed) |
| current consumption | 0...10 mA no-load |
| maximum delay first up | 5 ms |
| maximum delay response | 0.15 ms |
| maximum delay recovery | 0.35 ms |
| marking | CE |
| threaded length | 51 mm |
| height | 18 mm |
| length | 70 mm |
| net weight | 0.04 kg |
| product certifications |
CSA UL |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 12.6 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30 cm |
| Package 2 Height | 15 cm |
| Package 2 Weight | 2.154 kg |
| Package 3 Height | 15 cm |
| Package 1 Width | 8.3 cm |
| Package 1 Height | 2.6 cm |
| Package 1 Weight | 36.0 g |
| Number of Units in Package 2 | 44 |
| Unit Type of Package 2 | S02 |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
