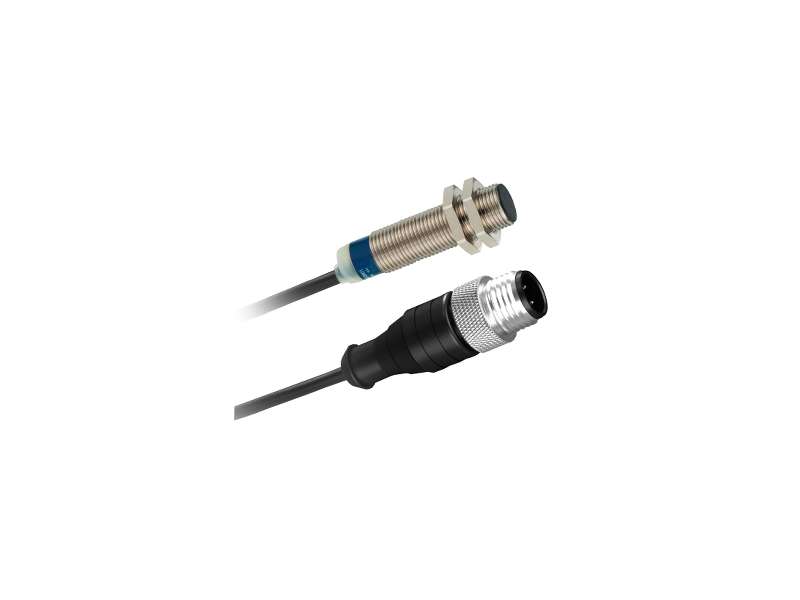

Schneider Electric Induktivni senzor XS6 M12 - D55mm - mesing - Sn5mm - 12..24VDC - M12 0.15m;XS612B2PAL01M12
Inductive proximity sensors XS, inductive sensor XS6 M12, L59mm, brass, Sn5mm, 12...24 VDC, M12 0.15 m...
VAT-exclusive price: 6.115,00 |
VAT-inclusive price: 7.338,00 |
Inductive proximity sensors XS, inductive sensor XS6 M12, L59mm, brass, Sn5mm, 12...24 VDC, M12 0.15 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | Application |
| sensor type | Inductive proximity sensor |
| type of sensing window | Adjustable |
| sensor name | XS6 |
| sensor design | Cylindrical M12 |
| size | 55 mm |
| body type | Fixed |
| detector flush mounting acceptance | Non flush mountable |
| material | Metal |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance |
5 mm non flush mountable 3.4 mm flush mountable |
| discrete output function | 1 NO |
| output circuit type | DC |
| discrete output type | PNP |
| electrical connection | Remote male connector M12, 4 pins |
| cable length | 0.15 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection |
IP67 double insulation conforming to IEC 60529 IP69K conforming to DIN 40050 |
| thread type | M12 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | Nickel plated brass |
| sensing range | > 4...8 mm |
| fine adjustment zone |
1.7…3.4 mm flush mountable 1.7…5 mm non flush mountable |
| differential travel | 1...15% of Sr |
| cable composition | 3 x 0.34 mm² |
| wire insulation material | PvR |
| status LED |
Supply on and teach mode: 1 LED (green) Output state: 1 LED (yellow) |
| supply voltage limits | 10…36 V DC |
| switching frequency | <= 1000 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 10 ms |
| maximum delay response | 0.3 ms |
| maximum delay recovery | 0.7 ms |
| marking | CE |
| threaded length | 42 mm |
| length | 59 mm |
| net weight | 0.1 kg |
| product certifications |
UL CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 12.5 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30 cm |
| Package 2 Height | 15 cm |
| Package 2 Weight | 2.034 kg |
| Package 3 Height | 15 cm |
| Package 1 Width | 14.1 cm |
| Package 1 Height | 2.6 cm |
| Package 1 Weight | 56.0 g |
| Number of Units in Package 2 | 22 |
| Unit Type of Package 2 | S02 |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
