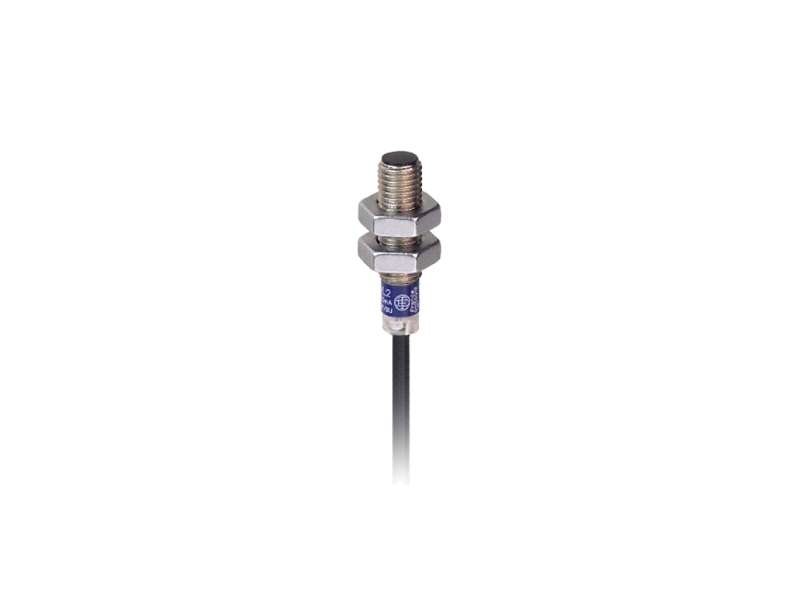

Schneider Electric Induktivni senzor XS6 M8 - D51mm-nerđajući čelik - Sn2.5mm -12..48VDC - kabl 2m;XS608B1NBL2
Inductive proximity sensors XS, inductive sensor XS6 M8, L51mm, stainless, Sn2.5 mm, 12...48 VDC, cable 2 m...
VAT-exclusive price: 5.810,00 |
VAT-inclusive price: 6.972,00 |
Inductive proximity sensors XS, inductive sensor XS6 M8, L51mm, stainless, Sn2.5 mm, 12...48 VDC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS6 |
| sensor design | Cylindrical M8 |
| size | 51 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Stainless steel |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 2.5 mm |
| discrete output function | 1 NC |
| output circuit type | DC |
| discrete output type | NPN |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M8 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | Stainless steel 303 |
| sensing range | > 0...2.5 mm |
| operating zone | 0…2 mm |
| differential travel | 1...15% of Sr |
| cable composition | 3 x 0.11 mm² |
| wire insulation material | PvR |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 10…58 V DC |
| switching frequency | <= 2500 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 10 ms |
| maximum delay response | 0.2 ms |
| maximum delay recovery | 0.2 ms |
| marking | CE |
| threaded length | 42 mm |
| length | 51 mm |
| net weight | 0.035 kg |
| product certifications |
CSA UL |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 41 g |
| Package 1 Height | 1.7 cm |
| Package 1 width | 14.7 cm |
| Package 1 Length | 20.4 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 585 g |
| Package 2 Height | 15 cm |
| Package 2 width | 15 cm |
| Package 2 Length | 40 cm |
| Package 3 Height | 15 cm |
| Warranty | 18 months |
|---|
