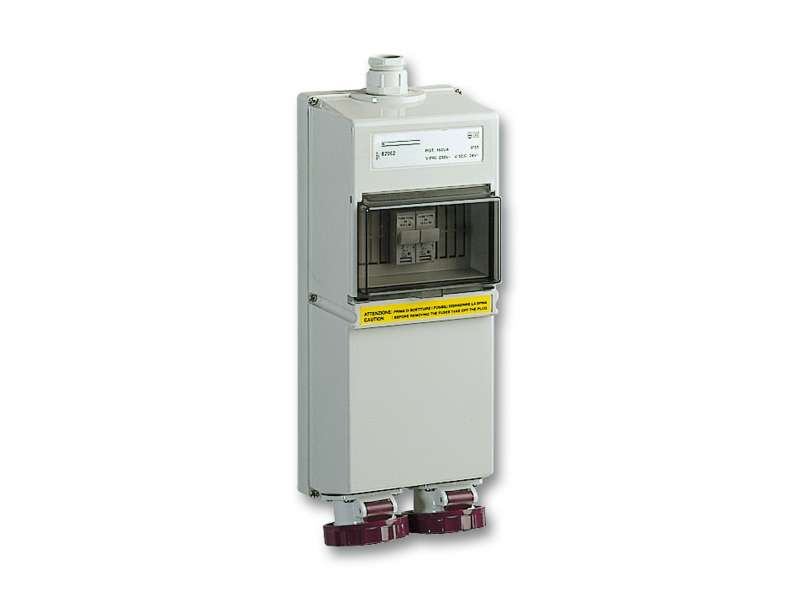

Schneider Electric Industrijska utičnica - 2x16 A - 2P - 230 V AC - IP 65 - nadzidna ; 82062
Industrial socket - 2x16 A - 2P - 230 V AC - IP 65 - wall...
VAT-exclusive price: 22.103,00 |
VAT-inclusive price: 26.523,60 |
Industrial socket - 2x16 A - 2P - 230 V AC - IP 65 - wall
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Interlocked socket
|
|
| device short name |
PK Isoblock socket
|
|
| plug, socket category |
Extra-low voltage
|
|
| poles description |
2P
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| [In] rated current |
16 A
|
|
|---|---|---|
| [Ue] rated operational voltage |
230 V
|
|
| output voltage |
24 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
Without
|
|
| secondary keyway clockwise position |
Without
|
|
| transformer rated power in VA |
160 VA
|
|
| fuse type |
Cylindrical
|
|
| fuse size |
10.3 x 38 mm
|
|
| socket number |
2
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| maximum cable cross section |
6 mm²
|
|
| maximum cable outer diameter |
25 mm
|
|
| cable entry |
Cable gland
|
|
| thread type |
Pg 21
|
|
| base dimension |
144 x 345 mm
|
|
| height |
345 mm
|
|
| width |
144 mm
|
|
| depth |
126 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Violet
|
| standards |
IEC 309-2
IEC 309-1 |
|
|---|---|---|
| IP degree of protection |
IP65 conforming to IEC 529
|
|
| IK degree of protection |
IK10 conforming to EN 50102
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
|
| Package 1 Weight |
1.000 kg
|
|
|---|---|---|
| Package 1 Height |
0.010 dm
|
|
| Package 1 width |
0.010 dm
|
|
| Package 1 Length |
0.020 dm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information |
-
Pratika 82062
