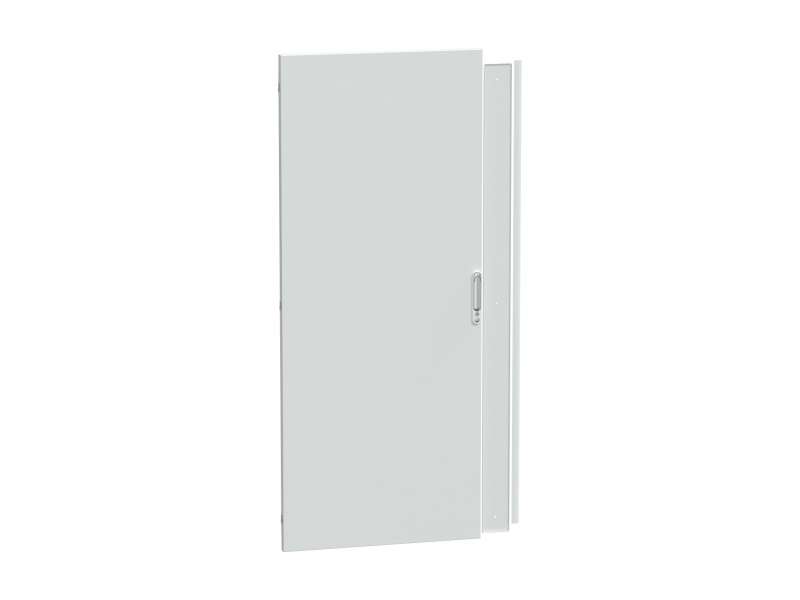

Schneider Electric IP30 neprovidna vrata, Š = 800 mm; LVS08518

IP30 PLAIN DOOR W800; LVS08518...

Brand: Schneider Electric
Product Code: LVS08518
Availability: Check availability

VAT-exclusive price: 42.518,00

VAT-inclusive price: 51.021,60

Qnt:

Description
Specification

IP30 PLAIN DOOR W800; LVS08518

Main
Range	PrismaSeT
Range of product	PrismaSeT P
Product or component type	Door
Range compatibility	PrismaSeT (PrismaSeT P) cubicle
Provided equipment	door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge barrier 150 mm for the side compartment finishing accessory
Enclosure mounting	Floor-standing
type of door	Plain
IP degree of protection	IP30

Complementary
installation description	Cubicle - width 800 mm Cubicle - width 650 + 150 mm
Door opening side	Reversible
Number of locks	2
door opening angle	120 °
Number of vertical modules [50 mm]	36
Enclosure material	Treated sheet steel
Quantity per set	Set of 1
Height	2000 mm
Width	800 mm
Depth	30 mm
Net weight	24.92 kg
Surface finish	Textured Matt
Colour	White (RAL 9003)

Environment
IK degree of protection	IK08 conforming to EN/IEC 62262
Standards	IEC 61439-1 IEC 61439-2
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
