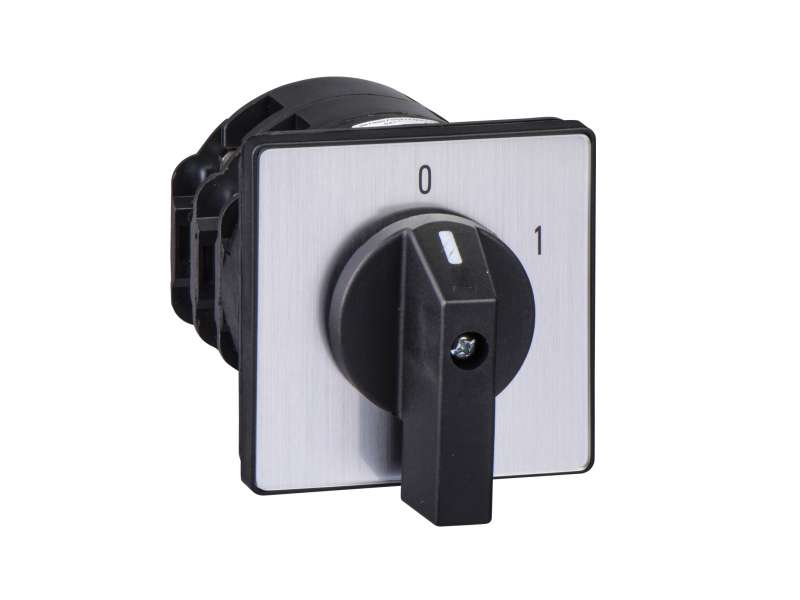

Cam changeover switch - 4-pole - 60° - 115 A - screw mounting
| range of product |
Harmony K
|
|
|---|---|---|
| product or component type |
Complete cam switch
|
|
| component name |
K115
|
|
| [Ith] conventional free air thermal current |
115 A
|
|
| mounting location |
Front
|
|
| fixing mode |
4 holes
|
|
| cam switch head type |
With front plate 88 x 88 mm
|
|
| type of operator |
Black handle
|
|
| rotary handle padlocking |
Without
|
|
| presentation of legend |
With metallic legend, 1 - 0 - 2 black marking
|
|
| cam switch function |
Changeover switch
|
|
| return |
Without
|
|
| off position |
With Off position
|
|
| poles description |
4P
|
|
| switching positions |
Right: 0° - 60°
Left: 0° - 300° |
|
| IP degree of protection |
IP40 conforming to IEC 529
IP40 conforming to NF C 20-010 |
| switching angle |
60 °
|
|
|---|---|---|
| [Ui] rated insulation voltage |
690 V (pollution degree 3) conforming to EN 60947-1
690 V (pollution degree 3) conforming to IEC 60947-1 |
|
| rated operational power in W |
13000 W AC-3, 380/440 V 1 phase conforming to EN/IEC 60947-3
15000 W AC-23A, 220/240 V 1 phase conforming to EN/IEC 60947-3 15000 W AC-3, 220/240 V 3 phases conforming to EN/IEC 60947-3 22000 W AC-23A, 380/440 V 1 phase conforming to EN/IEC 60947-3 30000 W AC-23A, 220/240 V 3 phases conforming to EN/IEC 60947-3 30000 W AC-3, 380/440 V 3 phases conforming to EN/IEC 60947-3 30000 W AC-3, 660/690 V 3 phases conforming to EN/IEC 60947-3 3700 W AC-3, 110 V 1 phase conforming to EN/IEC 60947-3 45000 W AC-23A, 380/440 V 3 phases conforming to EN/IEC 60947-3 5500 W AC-23A, 110 V 1 phase conforming to EN/IEC 60947-3 65000 W AC-23A, 660/690 V 3 phases conforming to EN/IEC 60947-3 7500 W AC-3, 220/240 V 1 phase conforming to EN/IEC 60947-3 |
|
| [Ie] rated operational current AC |
100 A AC-21A conforming to EN/IEC 60947-3
|
|
| short-circuit current |
15000 A
|
|
| short-circuit protection |
125 A cartridge fuse, type gG
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 947-1
6 kV conforming to IEC 947-1 |
|
| contact operation |
Slow-break
|
|
| positive opening |
With
|
|
| electrical connection |
Captive screw clamp terminals flexible, clamping capacity: 1 x 25 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 35 mm² |
|
| tightening torque |
2.5 N.m
|
|
| switching capacity in mA |
100000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
100000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms) 100000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms) 100000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms) 100000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms) 100000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms) 115000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms) 115000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms) 115000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms) 33000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms) 33000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms) 33000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms) |
|
| mechanical durability |
300000 cycles
|
|
| CAD overall width |
88 mm
|
|
| CAD overall height |
88 mm
|
|
| CAD overall depth |
181 mm
|
|
| net weight |
0.75 kg
|
| standards |
EN/IEC 60947-3
|
|
|---|---|---|
| product certifications |
CULus 120 V 5 hp 1 phase
CULus 240 V 10 hp 1 phase CULus 240 V 20 hp 3 phases CULus 480 V 30 hp 3 phases |
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
Class II conforming to NF C 20-030 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
-
Harmony K K115H004UP
