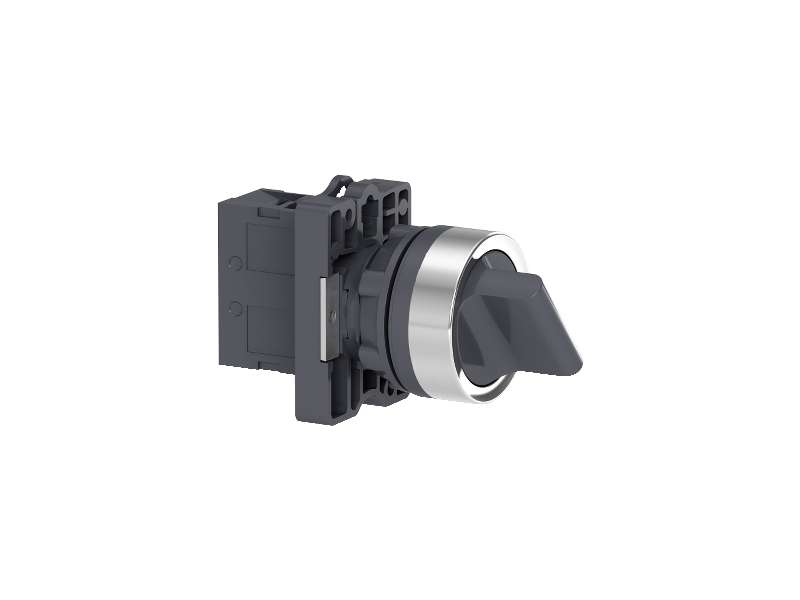

Complete selector switch, Easy Harmony XA2, plastic, black, 22mm, long handle, 2 positions, stay put, 1NO
Main
|
range of product |
Easy Harmony XA2 |
|
product or component type |
Complete selector switch |
|
device short name |
XA2 |
|
bezel material |
Plastic |
|
mounting diameter |
22 mm |
Complementary
|
sale per indivisible quantity |
1 |
|
fixing center |
>= 30 x 40 mm (panel) - thickness: 1…5 mm |
|
fixing mode |
Fixing nut: 2…2.4 N.m |
|
shape of signaling unit head |
Round |
|
type of operator |
Stay put |
|
operator profile |
Black long handle |
|
operator position information |
2 positions |
|
contacts type and composition |
1 NO |
|
contact operation |
Slow-break |
|
mechanical durability |
300000 cycles |
|
connections - terminals |
, clamping capacity: <= 2 x 1.5 mm²
, clamping capacity: <= 1 x 2.5 mm²
, clamping capacity: >= 1 x 0.5 mm²
Faston terminals, connection size: 6.3 mm |
|
tightening torque |
0.8 N.m |
|
short-circuit protection |
10 A fuse type gL conforming to IEC 60269-1 |
|
[Ith] conventional free air thermal current |
10 A (screw-clamp terminals) |
|
[Ui] rated insulation voltage |
600 V conforming to EN 60947-1 |
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-1 |
|
[Ie] rated operational current |
3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600 |
|
electrical durability |
500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
|
electrical reliability |
Λ < 10exp(-8) at 24 V |
|
width |
30 mm |
|
height |
48.5 mm |
|
depth |
68.2 mm |
|
net weight |
0.041 kg |
Environment
|
protective treatment |
TC |
|
ambient air temperature for storage |
-40…70 °C |
|
ambient air temperature for operation |
-25…55 °C |
|
overvoltage category |
Class I conforming to IEC 536 |
|
IP degree of protection |
IP65 conforming to IEC 60529 |
|
IK degree of protection |
IK06 conforming to IEC 60529 |
|
standards |
IEC 60947-5-1
GB 14048.5
IEC 60947-1
GB 14048.1 |
|
product certifications |
CE
CCC |
|
vibration resistance |
10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
|
shock resistance |
120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
55.0 g |
|
Package 1 Height |
3.0 cm |
|
Package 1 width |
5.0 cm |
|
Package 1 Length |
7.0 cm |
|
Unit Type of Package 2 |
S02 |
|
Number of Units in Package 2 |
100 |
|
Package 2 Weight |
5.55 kg |
|
Package 2 Height |
15.0 cm |
|
Package 2 width |
30.0 cm |
|
Package 2 Length |
40.0 cm |
|
Unit Type of Package 3 |
PAL |
|
Number of Units in Package 3 |
2000 |
|
Package 3 Weight |
110.2 kg |
|
Package 3 Height |
60.0 cm |
|
Package 3 width |
80.0 cm |
|
Package 3 Length |
90.0 cm |
