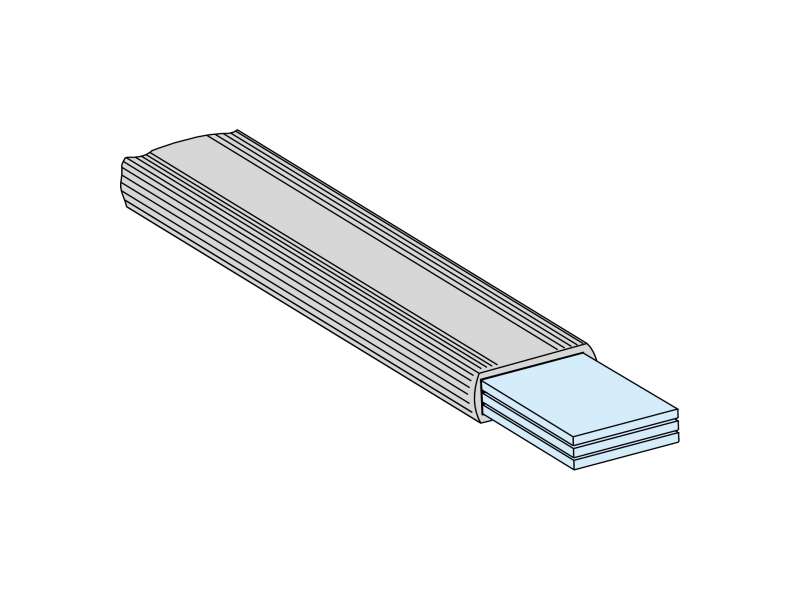

Schneider Electric Izolovana fleksibilna sabirnica 200 A, 20 x 2 mm, d = 1800 mm; LVS04742
Insulated flexible bar, 200 A, size 20 x 2 mm, length 1800 mm; LVS04742...
VAT-exclusive price: 5.436,00 |
VAT-inclusive price: 6.523,20 |
Insulated flexible bar, 200 A, size 20 x 2 mm, length 1800 mm; LVS04742
| Range | PrismaSeT |
|---|---|
| Range of product |
PrismaSeT G PrismaSeT P |
| Product or component type | Insulated flexible bar |
| product name |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure PrismaSeT (Prisma iPM L) enclosure PrismaSeT (Prisma iPM M) enclosure |
| Accessory / separate part category | Current distribution accessory |
| Standards |
IEC 61439-2, inside enclosure IEC 61439-1, inside enclosure |
| Product certifications | ASTA |
| installation description |
Cubicle Floor-standing enclosure Wall-mounted enclosure |
|---|---|
| Installed device |
ComPact: NSX100 + INS100 ComPact: INS100...160 ComPact: INV100 ComPact: INV160 EasyPact: CVS100...160 |
| [Ie] rated operational current | 200 A |
| Busbar cross section | 20 x 2 mm |
| Length | 1800 mm |
| Net weight | 1.38 kg |
| Quantity per set | Set of 1 |
