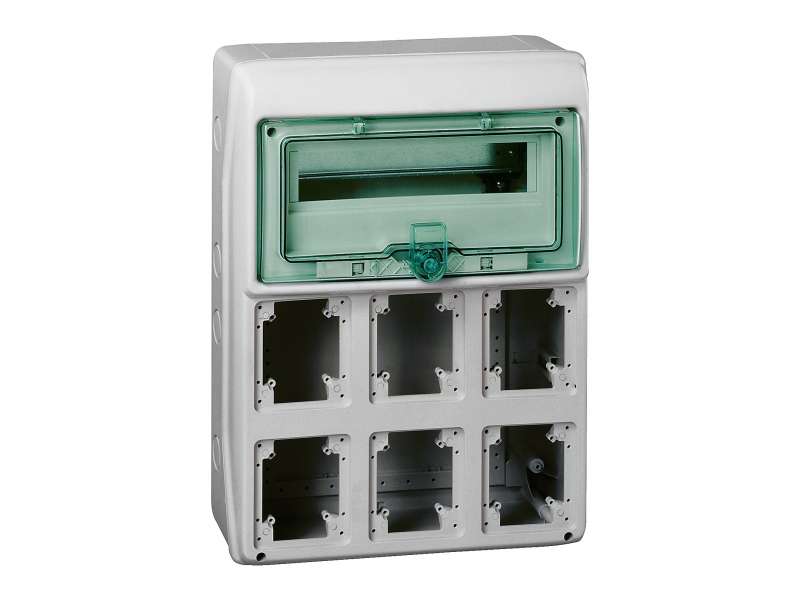

Schneider Electric Kaedra - za utičnice- 6 otvora - 1 x 12 modula - 1 priključni blok;13181
Kaedra - for power outlet - 6 openings - 1 x 12 modules...
VAT-exclusive price: 10.318,00 |
VAT-inclusive price: 12.381,60 |
Kaedra - for power outlet - 6 openings - 1 x 12 modules
| range |
Kaedra
|
|
|---|---|---|
| product or component type |
Weatherproof enclosure
|
|
| enclosure type |
Enclosure for power outlet
|
|
| accessories included with enclosure |
6 plates for 65 x 85 power outlets
2 plates for push-button controls 2 wiring straps |
|
| mounting plate description |
Without mounting plate
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| number of 18 mm modules per row |
12
|
|
| total number of 18 mm modules |
12
|
|
| number of horizontal rows |
1
|
|
| electrical insulation class |
Class II
Double insulation |
|
| number of openings of interface |
6
|
|
| number of plates |
2 for push-button controls
6 for 65 x 85 power outlets |
|
| provided equipment |
2 wiring strap
6 plate for 65 x 85 power outlet 2 plate for push-button control |
|
| type of front cover |
Transparent
|
|
| power dissipation in W |
28 W
|
|
| [In] rated current |
63 A
|
|
| type of rail |
DIN
|
|
| number of pre-cutouts PG ISO |
17
|
|
| number of terminal blocks |
1 with 8 outgoers
|
|
| distribution block outgoers |
4 x 10 mm²
4 x 16 mm² |
|
| locking options description |
Optional keylock
|
|
| enclosure material |
Housing: self-extinguishing polymer
|
|
| net weight |
2.5 kg
|
|
| base dimension |
90 x 100 mm
|
|
| width |
340 mm
|
|
| height |
460 mm
|
|
| depth |
160 mm
|
|
| internal depth |
91 mm
|
|
| colour |
Door: transparent green
Enclosure: light grey (RAL 7035) |
| standards |
IEC 60439-3
IEC 60695-2-1 IEC 670 EN 62262 IEC 60529 EN 50262 |
|
|---|---|---|
| fire resistance |
650 °C conforming to IEC 60695-2-1
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 50102
|
|
| Environmental characteristics (UV) |
UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013 |
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…40 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
2.848 kg
|
|
| Package 1 Height |
16.8 cm
|
|
| Package 1 width |
36 cm
|
|
| Package 1 Length |
47 cm
|
|
| Unit Type of Package 2 |
P12
|
|
| Number of Units in Package 2 |
-
Pratika 13181
