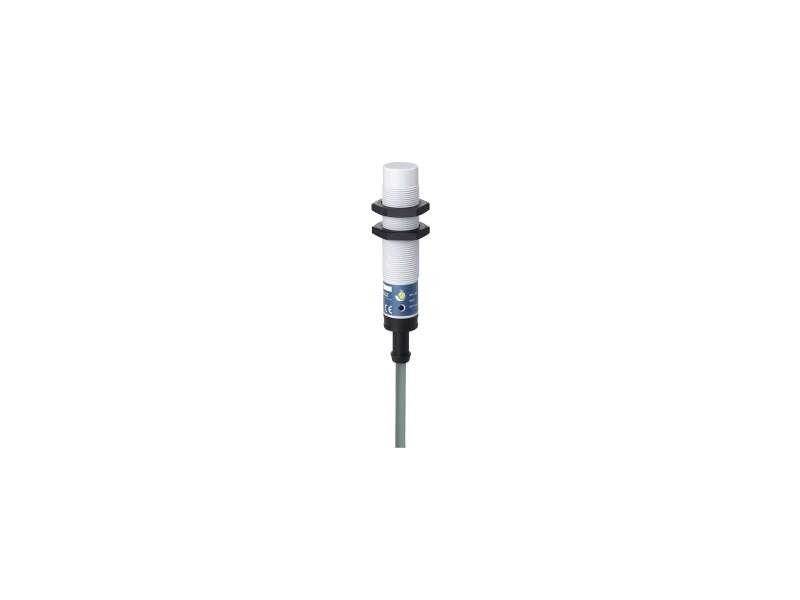

Schneider Electric Kapacitivni senzor - XT1 - cilindrični M30 - plastični - Sn 15 mm - kabl 2 m;XT230A1NAL2
Telemecanique Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, cable 2 m...
VAT-exclusive price: 16.163,00 |
VAT-inclusive price: 19.395,60 |
Telemecanique Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, cable 2 m
| range of product | Telemecanique Capacitive proximity sensors XT |
|---|---|
| sensor type | Capacitive proximity sensor |
| product specific application | Detection of insulated or conductive materials |
| sensor name | XT2 |
| sensor design | Cylindrical M30 |
| size | 74.5 mm |
| body type | Fixed |
| detector flush mounting acceptance | Non flush mountable |
| material | Plastic |
| enclosure material | Plastic |
| type of output signal | Discrete |
| wiring technique | 3-wire |
| [Sn] nominal sensing distance | 15 mm |
| discrete output function | 1 NO |
| output circuit type | DC |
| discrete output type | NPN |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| maximum delay response | 10 ms |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| ISO thread | M30 x 1.5 |
|---|---|
| detection face | Frontal |
| [Sa] assured operating distance | 0…11 mm |
| adjustment zone | 0…17 mm |
| differential travel | < 1...20 % Sr |
| repeat accuracy | < 5 % Sr |
| wire insulation material | PVC |
| status LED | Output state indication: 1 LED (yellow) |
| supply voltage limits | 10…30 V DC |
| maximum residual current | 100 mA open state |
| protection type | Short-circuit protection |
| switching frequency | <= 150 Hz |
| maximum voltage drop | <2.5 V (closed) |
| current consumption | < 15 mA |
| maximum delay first up | 100 ms |
| maximum delay recovery | 10 ms |
| maximum switching current | 200 mA |
| marking | CE |
| setting-up | Sensitivity by potentiometer |
| threaded length | 48.5 mm |
| length | 74.5 mm |
| net weight | 0.27 kg |
| standards | EN/IEC 60947-5-2 |
|---|---|
| product certifications | CULus |
| ambient air temperature for operation | -10…60 °C |
| vibration resistance | 10 gn amplitude = 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| resistance to electrostatic discharge |
4 kV contact conforming to IEC 61000-4-2 8 kV air conforming to IEC 61000-4-2 |
| resistance to electromagnetic fields | 3 V/m conforming to IEC 61000-4-3 |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 160.0 g |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 13.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 30 |
| Package 2 Weight | 5.185 kg |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
