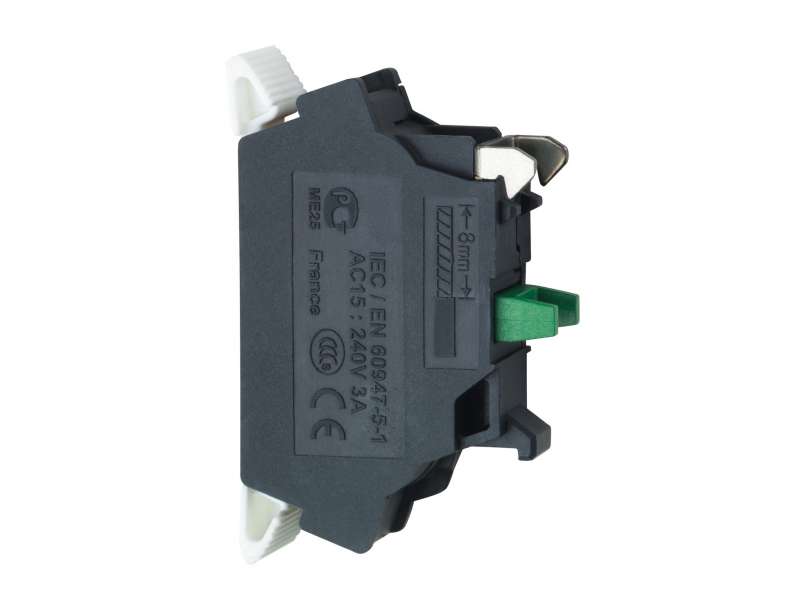

Schneider Electric Kontaktni blok za glavu Ø22 1NO opružni priključak terminal;ZBE1015
Single contact block, silver alloy, spring clamp terminal, 1 NO...
VAT-exclusive price: 806,00 |
VAT-inclusive price: 967,20 |
Single contact block, silver alloy, spring clamp terminal, 1 NO
| range of product |
Harmony XB5
Harmony XB4 |
|
|---|---|---|
| product or component type |
Contact block
|
|
| device short name |
ZBE
|
|
| sale per indivisible quantity |
4
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| contacts type and composition |
1 NO
|
|
| contact operation |
Slow-break
|
|
| contact block type |
Single
|
|
| contacts usage |
Standard contacts
|
|
| connections - terminals |
Spring clamp terminals
|
| net weight |
0.011 kg
|
|
|---|---|---|
| positive opening |
Without
|
|
| operating travel |
2.6 mm (NO changing electrical state)
4.3 mm (total travel) |
|
| operating force |
2.3 N NO changing electrical state
|
|
| mechanical durability |
10000000 cycles
|
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| electrical reliability |
Λ < 10exp(-7), 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
|
| mounting of block |
Front mounting
|
|
| electrical composition code |
C11 (quantity <= 3)
C14 (quantity <= 2) M10 (quantity <= 2) |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| standards |
JIS C8201-5-1
EN/IEC 60947-1 EN/IEC 60947-5-4 EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 JIS C8201-1 |
|
| product certifications |
GOST
BV CCC DNV RINA GL LROS (Lloyds register of shipping) UL CSA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
9 g
|
|
| Package 1 Height |
4.2 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
5.6 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
4
|
|
| Package 2 Weight |
43 g
|
|
| Package 2 Height |
4.2 cm
|
|
| Package 2 width |
5.4 cm
|
|
| Package 2 Length |
5.6 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
320
|
|
| Package 3 Weight |
3.8 kg
|
|
| Package 3 Height |
15 cm
|
-
Harmony XB4 ZBE1015
