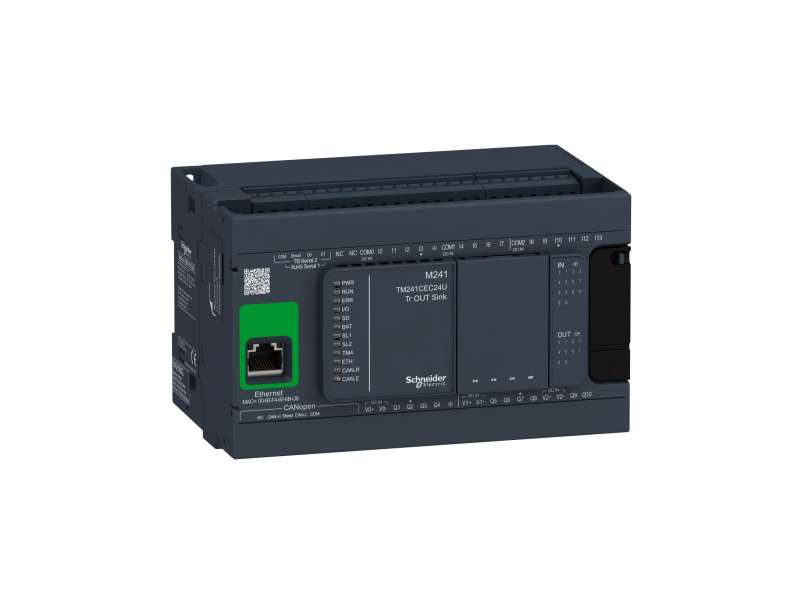

Name: Schneider Electric Kontroler M241 24 IO tranzistorski NPN Ethernet CAN master;TM241CEC24U
Brand: Schneider Electric
SKU: TM241CEC24U
Price: 73870.80 RSD
Availability: OutOfStock

Schneider Electric Kontroler M241 24 IO tranzistorski NPN Ethernet CAN master;TM241CEC24U

Logic controller, Modicon M241, 24 IO transistor NPN Ethernet CAN master...

Brand: Schneider Electric
Product Code: TM241CEC24U
Availability: Check availability

VAT-exclusive price: 61.559,00

VAT-inclusive price: 73.870,80

Qnt:

Logic controller, Modicon M241, 24 IO transistor NPN Ethernet CAN master

Main
range of product	Modicon M241
product or component type	Logic controller
[Us] rated supply voltage	24 V DC
discrete input number	14, discrete input 8 fast input conforming to IEC 61131-2 Type 1
discrete output type	Transistor
discrete output number	10 transistor 4 fast output
discrete output voltage	24 V DC for transistor output
discrete output current	0.5 A for transistor output (Q0...Q9) 0.1 A for fast output (PTO mode) (Q0...Q3)

Complementary
discrete I/O number	24
maximum number of I/O expansion module	7 (local) 14 (remote)
supply voltage limits	20.4…28.8 V
inrush current	50 A
power consumption in W	32.6…40.4 W (with max number of I/O expansion module)
discrete input logic	Sink or source
discrete input voltage	24 V
discrete input voltage type	DC
voltage state 1 guaranteed	>= 15 V for input
voltage state 0 guaranteed	<= 5 V for input
discrete input current	5 mA for input 10.7 mA for fast input
input impedance	4.7 kOhm for input 2.81 kOhm for fast input
response time	50 µs turn-on, I0...I13 terminal(s) for input 50 µs turn-off, I0...I13 terminal(s) for input <= 2 µs turn-on, I0...I7 terminal(s) for fast input <= 2 µs turn-off, I0...I7 terminal(s) for fast input <= 34 µs turn-on, Q0...Q9 terminal(s) for output <= 250 µs turn-off, Q0...Q9 terminal(s) for output <= 2 µs turn-on, Q0...Q3 terminal(s) for fast output <= 2 µs turn-off, Q0...Q3 terminal(s) for fast output
configurable filtering time	1 µs for fast input 12 ms for fast input 0 ms for input 1 ms for input 4 ms for input 12 ms for input
discrete output logic	Negative logic (sink)
output voltage limits	30 V DC
maximum current per output common	2 A with Q0...Q3 for fast output 2 A with Q4...Q7 for output 1 A with Q8...Q9 for output
maximum output frequency	20 kHz for fast output (PWM mode) 100 kHz for fast output (PLS mode) 1 kHz for output
accuracy	+/- 0.1 % at 0.02…0.1 kHz for fast output +/- 1 % at 0.1…1 kHz for fast output
maximum leakage current	5 µA for output
maximum voltage drop	<1 V
maximum tungsten load	<2.4 W
protection type	Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection for fast output
reset time	10 ms automatic reset output 12 s automatic reset fast output
memory capacity	8 MB for program 64 MB for system memory RAM
data backed up	128 MB built-in flash memory for backup of user programs
data storage equipment	<= 16 GB SD card (optional)
battery type	BR2032 lithium non-rechargeable, battery life: 4 year(s)
backup time	2 years at 25 °C
execution time for 1 KInstruction	0.3 ms for event and periodic task 0.7 ms for other instruction
application structure	8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks
realtime clock	With
clock drift	<= 60 s/month at 25 °C
positioning functions	PTO function 4 channel(s) (positioning frequency: 100 kHz) PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz)
counting input number	4 fast input (HSC mode) at 200 kHz 14 standard input at 1 kHz
