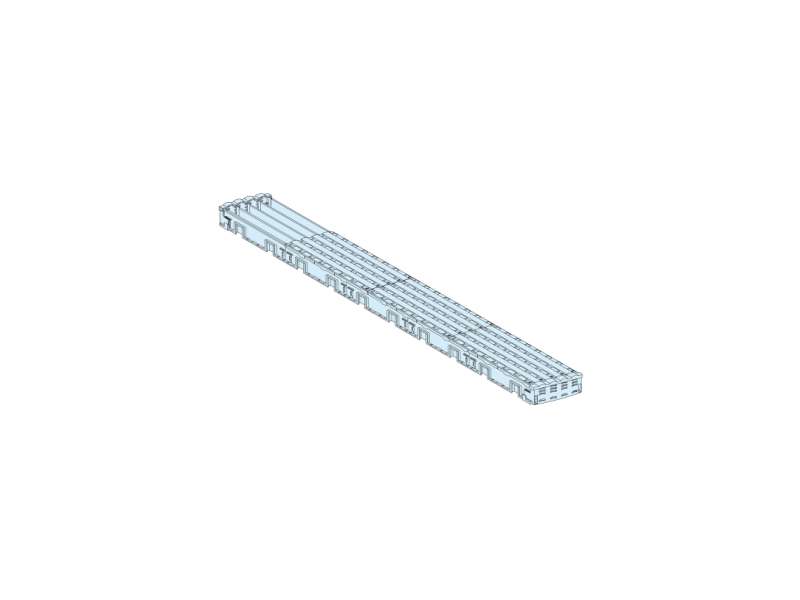

Schneider Electric Linergy BW 3P IPxxB izolovana sabirnica 125A L750; LVS04107
Busbar, Linergy BW, 3P, 125A, insulated busbar, vertical, L750mm...
VAT-exclusive price: 8.627,00 |
VAT-inclusive price: 10.352,40 |
Busbar, Linergy BW, 3P, 125A, insulated busbar, vertical, L750mm
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Busbar |
| Product name | Linergy BW |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| IP degree of protection | IPxx B |
| Busbar description | Insulated bar |
| Quantity per set | Set of 1 |
| Poles description | 3P |
|---|---|
| Installation direction | Vertical, operating position: rear |
| installation description |
Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Pack enclosure |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 125 A |
| [Icw] rated short-time withstand current | 8.5 kA (1 s) |
| [Ipk] rated peak withstand current | 20 kA |
| I²t on activation | 72250 kA².s |
| Permissible current | 125 A |
| Length | 750 mm |
| Height | 85 mm |
| Depth | 35 mm |
| Net weight | 1.96 kg |
| Type of busbar connection | M6 threaded hole |
| Connection pitch | Connection each 25 mm |
| Standards |
IEC 61439-1 IEC 61439-2 |
|---|---|
| Product certifications | ASTA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.3 cm |
| Package 1 Width | 11.6 cm |
| Package 1 Length | 91.2 cm |
| Package 1 Weight | 1.963 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 21.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 35.0 kg |
