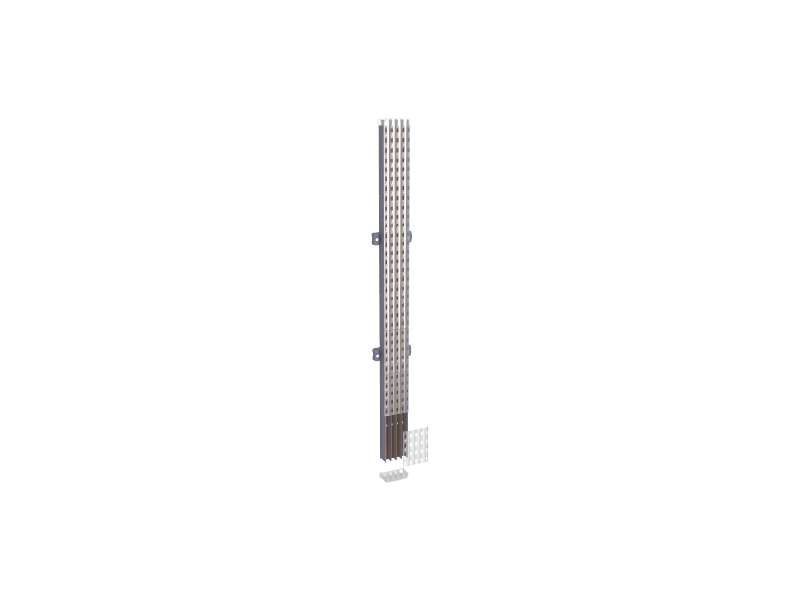

Schneider Electric Linergy BW 4P IPxxB izolovana sabirnica 250A L1000; LVS04122

Busbar, Linergy BW, 4P, 250A, insulated busbar, vertical, L1000mm...

Brand: Schneider Electric
Product Code: LVS04122
Availability: Check availability

VAT-exclusive price: 21.387,00

VAT-inclusive price: 25.664,40

Qnt:

Description
Specification

Busbar, Linergy BW, 4P, 250A, insulated busbar, vertical, L1000mm

Osnovne informacije
Grupa proizvoda	Linergy
Grupa proizvoda	Linergy
Tip proizvoda ili komponente	Sabirnica
Ime proizvoda	Linergy BW
Kompatibilnost grupe proizvoda	PrismaSeT (PrismaSeT G) orman PrismaSeT (PrismaSeT P) orman
Ip stepen zaštite	IPxx B
Opis sabirnice	Izolovana sabirnica
Količina po setu	Set od 1

Dopunske informacije
Broj polova	4P
Pravac instalacije	Vertikalno, radni položaj: zadnji deo ormana
installation description	Kućište - širina 650 mm Slobodnostojeći orman - širina 600 mm Nadzidni orman - širina 600 mm
[ui] nazivni napon izolacije	750 V AC
[uimp] nazivni podnosivi impulsni napon	8 kV
[ie] nazivna struja	250 A
[icw] kratkotrajna podnosiva struja kratkog spoja	13 kA (1 s)
[ipk] nazivna vršna struja kratkog spoja	30 kA
I²t po aktivaciji	169000 kA².s
Dopustiva struja	250 A
Dužina	1000 mm
Visina	85 mm
Dubina	45 mm
Masa proizvoda	4,68 kg
Tip povezivanja sabirnice	M6 otvor sa navojem
Povezivanje	Povezivanje na svakih 25 mm

Okruženje
Standardi	IEC 61439-1 IEC 61439-2
Sertifikacija proizvoda	ASTA
Mehanička robusnost	Seizmički testovi ojačanom strukturom - 2.5G u skladu sa IEC 60068-2-57

Pakovanje
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4,0 cm
Package 1 Width	13,0 cm
Package 1 Length	112,5 cm
Package 1 Weight	4,71 kg
Unit Type of Package 2	P12
Number of Units in Package 2	48
Package 2 Height	51,0 cm
Package 2 Width	80,0 cm
Package 2 Length	120,0 cm
Package 2 Weight	237,5 kg

Main
Range	Linergy
Range of product	Linergy
Product or component type	Busbar
Product name	Linergy BW
Range compatibility	PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure
IP degree of protection	IPxx B
Busbar description	Insulated bar
Quantity per set	Set of 1

Complementary
Poles description	4P
Installation direction	Vertical, operating position: rear
installation description	Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm
[Ui] rated insulation voltage	750 V AC
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	250 A
[Icw] rated short-time withstand current	13 kA (1 s)
[Ipk] rated peak withstand current	30 kA
I²t on activation	169000 kA².s
Permissible current	250 A
Length	1000 mm
Height	85 mm
Depth	45 mm
Net weight	4.68 kg
Type of busbar connection	M6 threaded hole
Connection pitch	Connection each 25 mm

Environment
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA
Mechanical robustness	Seismic tests structure reinforcement - 2.5G conforming to IEC 60068-2-57

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.0 cm
Package 1 Width	13.0 cm
Package 1 Length	112.5 cm
Package 1 Weight	4.71 kg
Unit Type of Package 2	P12
Number of Units in Package 2	48
Package 2 Height	51.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	237.5 kg
