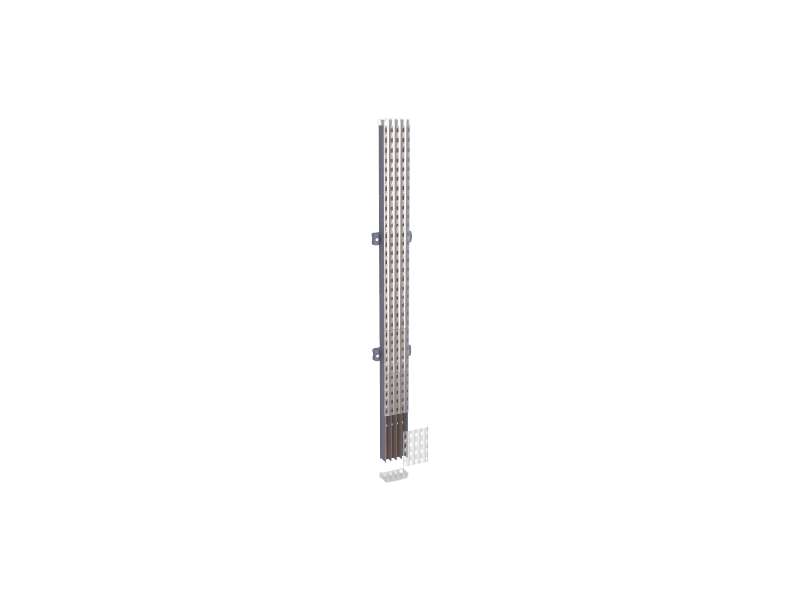

Schneider Electric Linergy BW 4P IPxxB izolovana sabirnica 400A L1000; LVS04123

Busbar, Linergy BW, 4P, 400A, insulated busbar, vertical, L1000mm...

Brand: Schneider Electric
Product Code: LVS04123
Availability: Check availability

VAT-exclusive price: 33.686,00

VAT-inclusive price: 40.423,20

Qnt:

Description
Specification

Busbar, Linergy BW, 4P, 400A, insulated busbar, vertical, L1000mm

Main
Range	Linergy
Range of product	Linergy
Product or component type	Busbar
Product name	Linergy BW
Range compatibility	PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure
IP degree of protection	IPxx B
Busbar description	Insulated bar
Quantity per set	Set of 1

Complementary
Poles description	4P
Installation direction	Vertical, operating position: rear
installation description	Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm
[Ui] rated insulation voltage	750 V AC
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	400 A
[Icw] rated short-time withstand current	20 kA (1 s)
[Ipk] rated peak withstand current	52.5 kA
I²t on activation	400000 kA².s
Permissible current	400 A
Length	1000 mm
Height	85 mm
Depth	45 mm
Net weight	6.36 kg
Type of busbar connection	M6 threaded hole
Connection pitch	Connection each 25 mm

Environment
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA
Mechanical robustness	Seismic tests structure reinforcement - 2.5G conforming to IEC 60068-2-57

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.5 cm
Package 1 Width	12.8 cm
Package 1 Length	113.0 cm
Package 1 Weight	6.433 kg
Unit Type of Package 2	P12
Number of Units in Package 2	48
Package 2 Height	50.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	320.0 kg
