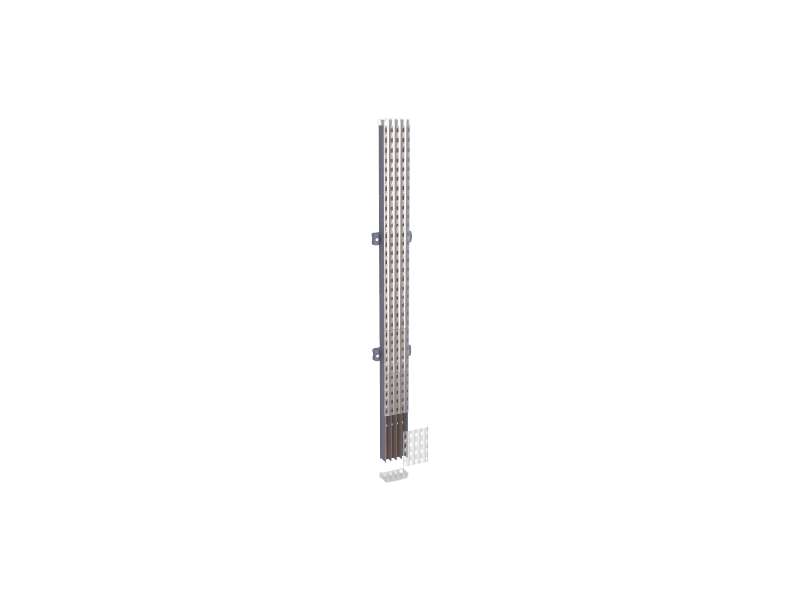

Schneider Electric Linergy BW 4P IPxxB izolovana sabirnica 400A L1000; LVS04124
Busbar, Linergy BW, 4P, 400A, insulated busbar, vertical, L1001mm...
VAT-exclusive price: 53.469,00 |
VAT-inclusive price: 64.162,80 |
Busbar, Linergy BW, 4P, 400A, insulated busbar, vertical, L1001mm
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Busbar |
| Product name | Linergy BW |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| IP degree of protection | IPxx B |
| Busbar description | Insulated bar |
| Quantity per set | Set of 1 |
| Poles description | 4P |
|---|---|
| Installation direction | Vertical, operating position: rear |
| installation description |
Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm |
| [Ui] rated insulation voltage | 1000 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 630 A |
| [Icw] rated short-time withstand current | 25 kA (1 s) |
| [Ipk] rated peak withstand current | 52.5 kA |
| I²t on activation | 625000 kA².s |
| Permissible current | 630 A |
| Length | 1000 mm |
| Height | 85 mm |
| Depth | 80 mm |
| Net weight | 16.64 kg |
| Type of busbar connection | M6 threaded hole |
| Connection pitch | Connection each 25 mm |
| Standards |
IEC 61439-1 IEC 61439-2 |
|---|---|
| Product certifications | ASTA |
| Mechanical robustness | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 15.0 cm |
| Package 1 Length | 116.5 cm |
| Package 1 Weight | 12.5 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 40.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 216.0 kg |
