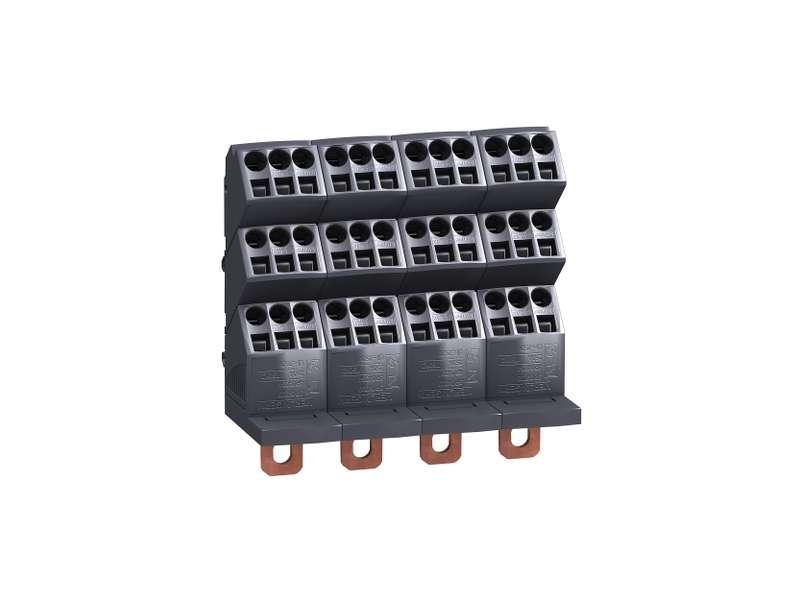

LINERGY DP 4P D.BLK/COMPACT 250A 36HOLES
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Distribution block |
| Product name | Linergy DP |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure PrismaSeT (Prisma PH) enclosure PrismaSeT (PrismaSeT Pack 250) enclosure |
| Accessory / separate part category | Current distribution accessory |
| IP degree of protection | IPxx B |
| Mounting support |
Mounting plate DIN rail |
|---|---|
| Installed device |
EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - horizontal installation EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - horizontal installation EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - vertical installation EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation ComPact: fixed INS250 - control: direct front rotary handle - vertical installation ComPact: fixed INS250 - control: lateral handle - vertical installation ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation ComPact: fixed INV100 - control: direct front rotary handle - vertical installation ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation ComPact: fixed INV160 - control: direct front rotary handle - vertical installation ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation ComPact: fixed INV200 - control: direct front rotary handle - vertical installation ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation ComPact: fixed INV250 - control: lateral handle - vertical installation ComPact: fixed INV250 - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: motor mechanism - horizontal installation ComPact: plug-in NSX100...250 without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - vertical installation |
| Poles description | 4P |
| [Ue] rated operational voltage | 690 V AC |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 250 A at 40 °C |
| [Icw] rated short-time withstand current | 8.5 kA for 1 s |
| [Ipk] rated peak withstand current | 30 kA |
| I²t on activation | 72250000 A².s |
| Connections - terminals |
Supply: direct connection120 mm² Distribution: spring terminal (phase) , 6 x 4…10 mm² (flexible) Distribution: spring terminal (phase) , 3 x 6…16 mm² (flexible) Distribution: spring terminal (phase) , 6 x 4…10 mm² (rigid) Distribution: spring terminal (phase) , 3 x 6…16 mm² (rigid) |
| Height | 140 mm |
| Width | 140 mm |
| Depth | 64 mm |
| Net weight | 0.96 kg |
| Colour | Anthracite grey (RAL 7016) |
| Pollution degree | 3 |
|---|---|
| Overvoltage category | III |
| Resistance to incandescent wire | 960 °C conforming to IEC 60695-2-11 |
| Standards |
IEC 60947-7-1 IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure |
| Product certifications | ASTA |
| Ambient air temperature for operation | -25…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 14.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 946.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.500 cm |
| Package 2 Width | 29.000 cm |
| Package 2 Length | 33.000 cm |
| Package 2 Weight | 9.480 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 93.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 201.000 kg |
