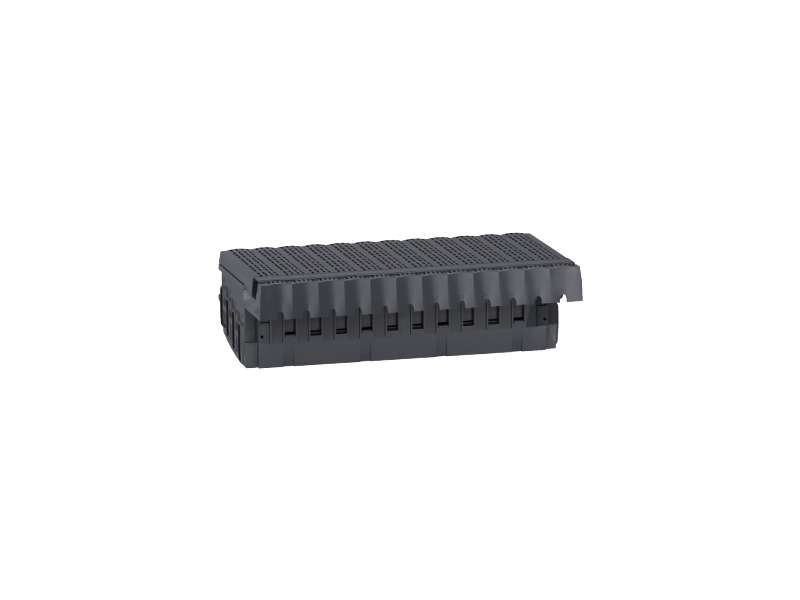

Schneider Electric Linergy FC razvodni blok za Compact NSX250 4P fiksni utične izvedbe; LVS04408
Distribution Block, Linergy FC, for compact NSX250 4P fixed W/O Connection...
VAT-exclusive price: 46.483,00 |
VAT-inclusive price: 55.779,60 |
Distribution Block, Linergy FC, for compact NSX250 4P fixed W/O Connection
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Device feeder |
| Product name | Linergy FC |
| Accessory / separate part category | Connection accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| installation description | Cubicle - width 650 mm |
|---|---|
| Number of devices | 3 (4P) |
| Poles description | 4P |
| Installed device |
ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation ComPact: fixed INS250 - control: direct front rotary handle - vertical installation ComPact: fixed INV250 - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - vertical installation ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - vertical installation ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation |
| Mounting support | Mounting plate |
| Installation direction | Horizontal |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 675 A at 40 °C |
| [Ue] rated operational voltage | 690 V |
| [Ipk] rated peak withstand current | 50 kA |
| I²t on activation | 25000000 A².s |
| Permissible current |
675 A at 40 °C 615 A at 60 °C 570 A at 70 °C |
| Connections - terminals | Outgoer: plug in (phase / neutral) , 3 outgoers |
| Standards |
IEC 61439-2 IEC 61439-1 |
| Product certifications |
ASTA KEMA |
| Quantity per set | Set of 1 |
| Length | 440 mm |
| Height | 132 mm |
| Depth | 235 mm |
| Net weight | 8 kg |
| Colour | Black |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 24.5 cm |
| Package 1 Length | 46.0 cm |
| Package 1 Weight | 4.488 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 103.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 200.0 kg |
