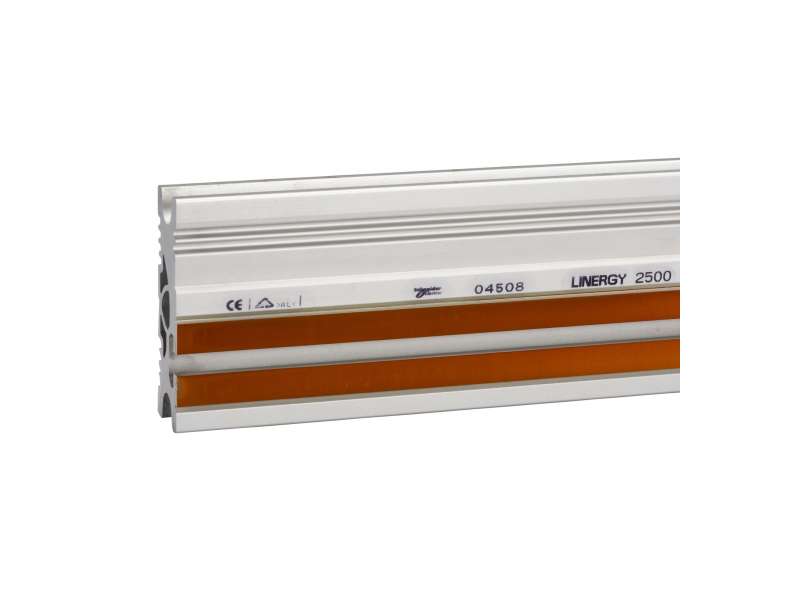

Name: Schneider Electric Linergy LGYE profil 2500A D2000; LVS04566
Brand: Schneider Electric
SKU: LVS04566
Price: 59936.40 RSD
Availability: OutOfStock

0 Compare products

0 View cart

+381 18 51 63 64

Schneider Electric Linergy LGYE profil 2500A D2000; LVS04566

LINERGY LGYE PROFILE 2500A LENGTH 2000MM; LVS04566...

Brand: Schneider Electric
Product Code: LVS04566
Availability: Check availability

VAT-exclusive price: 49.947,00

VAT-inclusive price: 59.936,40

Qnt:

Description
Specification

LINERGY LGYE PROFILE 2500A LENGTH 2000MM; LVS04566

Main
Range	Linergy
Range of product	Linergy
Product or component type	Profile busbar
product name	Linergy LGYE
Range compatibility	PrismaSeT (PrismaSeT P) enclosure
Accessory / separate part category	Busbar accessory
Busbar description	Linergy
Quantity per set	Set of 1

Complementary
Installation direction	Horizontal, operating position: top Horizontal, operating position: bottom
installation description	Cubicle - width 650 mm Cubicle - width 650 + 150 mm Cubicle duct - width 300 mm Cubicle duct - width 400 mm
[Ui] rated insulation voltage	1000 V
[Uimp] rated impulse withstand voltage	12 kV (degree of pollution: 3)
[Ie] rated operational current	2500 A
[Icw] rated short-time withstand current	60 kA (1 s) for 2 supports (horizontal position) 85 kA (1 s) for 3 supports (horizontal position) 100 kA (1 s) for 4 supports (horizontal position)
Permissible current	2440 A at 35 °C: <= IP31 2100 A at 35 °C: > IP31
Length	2000 mm
Height	150 mm
Width	100 mm
Depth	31 mm
Net weight	9.25 kg
Colour	Natural
Type of busbar connection	Single t-slot
Connection pitch	Free connection position
