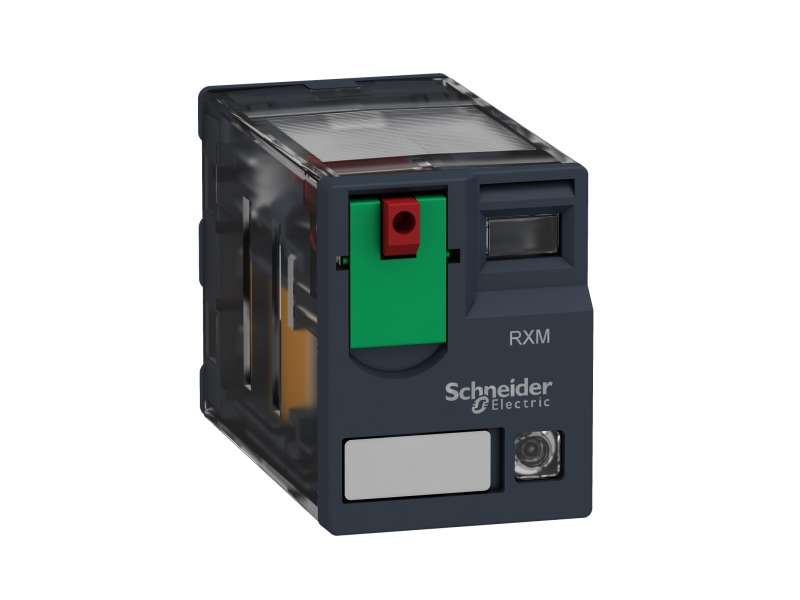

Miniature plug-in relay, 10 A, 3 CO, LED, 24 V AC
| range of product |
Zelio Relay
|
|
|---|---|---|
| series name |
Miniature
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RXM
|
|
| contacts type and composition |
3 C/O
|
|
| [Uc] control circuit voltage |
24 V AC 50/60 Hz
|
|
| [Ithe] conventional enclosed thermal current |
10 A at -40…55 °C
|
|
| status LED |
With
|
|
| control type |
Lockable test button
|
|
| utilisation coefficient |
20 %
|
| shape of pin |
Flat
|
|
|---|---|---|
| [Ui] rated insulation voltage |
250 V conforming to IEC
300 V conforming to CSA 300 V conforming to UL |
|
| [Uimp] rated impulse withstand voltage |
4 kV during 1.2/50 µs
|
|
| contacts material |
AgNi
|
|
| [Ie] rated operational current |
10 A at 28 V (DC) NO conforming to IEC
10 A at 250 V (AC) NO conforming to IEC 5 A at 28 V (DC) NC conforming to IEC 5 A at 250 V (AC) NC conforming to IEC 10 A at 30 V (DC) conforming to UL 10 A at 277 V (AC) conforming to UL |
|
| maximum switching voltage |
250 V conforming to IEC
|
|
| resistive rated load |
10 A at 250 V AC
10 A at 28 V DC |
|
| maximum switching capacity |
2500 VA/280 W
|
|
| minimum switching capacity |
170 mW at 10 mA, 17 V
|
|
| operating rate |
<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load |
|
| mechanical durability |
10000000 cycles
|
|
| electrical durability |
100000 cycles for resistive load
|
|
| average coil consumption in VA |
1.2 at 60 Hz
|
|
| average consumption |
1.2 VA at 60 Hz
|
|
| drop-out voltage threshold |
>= 0.15 Uc
|
|
| operate time |
20 ms
|
|
| release time |
20 ms
|
|
| average coil resistance |
180 Ohm at 20 °C +/- 15 %
|
|
| rated operational voltage limits |
19.2...26.4 V AC
|
|
| safety reliability data |
B10d = 100000
|
|
| protection category |
RT I
|
|
| test levels |
Level A group mounting
|
|
| operating position |
Any position
|
|
| CAD overall height |
79 mm
|
|
| CAD overall depth |
78.45 mm
|
|
| net weight |
0.037 kg
|
|
| device presentation |
Complete product
|
| dielectric strength |
1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact 2000 V AC between poles |
|
|---|---|---|
| product certifications |
GOST
REACH RoHS UL CE CSA Lloyd's |
|
| standards |
CSA C22.2 No 14
UL 508 EN/IEC 61810-1 |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
|
| shock resistance |
10 gn for in operation
30 gn for not operating |
|
| pollution degree |
2
|
| Package 1 Weight |
0.037 kg
|
|
|---|---|---|
| Package 1 Height |
0.410 dm
|
|
| Package 1 width |
0.210 dm
|
|
| Package 1 Length |
0.280 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Zelio Relays RXM3AB2B7
