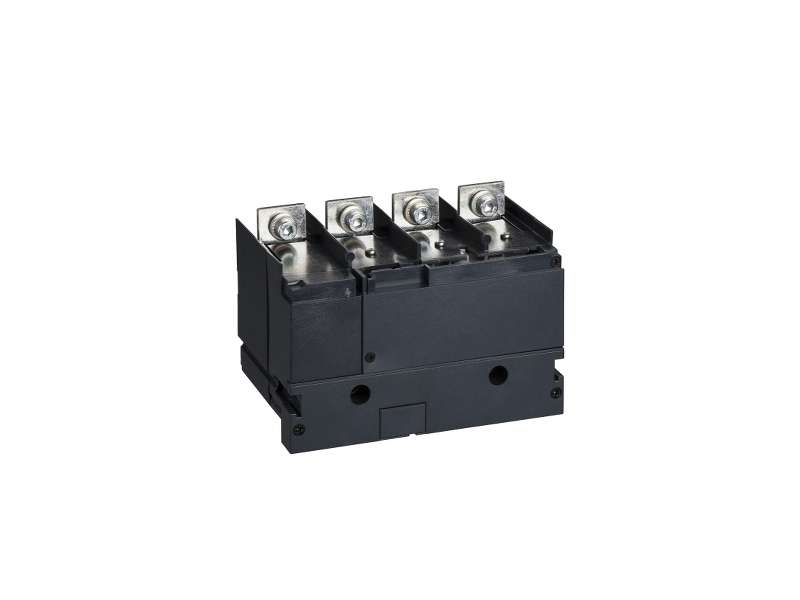

Schneider Electric Modul sa strujnim transformatorima - 100 A - 4P;LV429458
current transformer module, ComPact NSX100/160/250, 100 A rating, 4 poles...
VAT-exclusive price: 31.164,00 |
VAT-inclusive price: 37.396,80 |
current transformer module, ComPact NSX100/160/250, 100 A rating, 4 poles
| device short name | Current transformer module |
|---|---|
| product or component type | Current transformer |
| device application | Control |
| range compatibility |
ComPact NSX100 ComPact NSX160 ComPact NSX250 INS250 Compact INV100...250 |
| poles description | 4P |
| [In] rated current | 100 A |
| current transformer ratio | 100/5 A |
| power consumption in VA | 1.6 VA |
| accuracy class | Class 4.5 |
| auxiliary connection terminal | Cable connector 2.5 mm² |
|---|
| electrical shock protection class | Class II |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.172 kg |
| Package 1 Height | 13.5 cm |
| Package 1 width | 14.5 cm |
| Package 1 Length | 17.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 5.175 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
