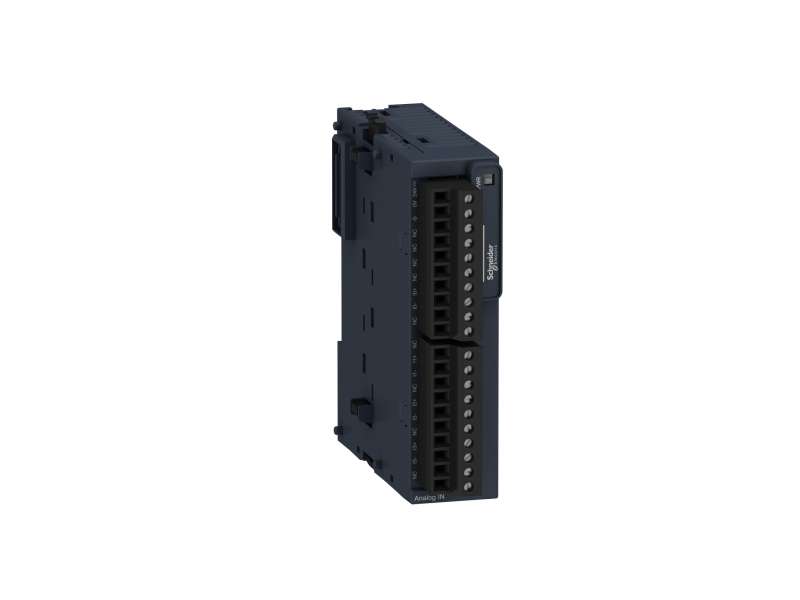

Name: Schneider Electric Modul TM3 - 4 analogna ulaza ; TM3AI4
Brand: Schneider Electric
SKU: TM3AI4
Price: 25514.40 RSD
Availability: OutOfStock

Schneider Electric Modul TM3 - 4 analogna ulaza ; TM3AI4

Modicon TM3 - 4 analog inputs (screw) 24Vdc...

Brand: Schneider Electric
Product Code: TM3AI4
Availability: Check availability

VAT-exclusive price: 21.262,00

VAT-inclusive price: 25.514,40

Qnt:

Modicon TM3 - 4 analog inputs (screw) 24Vdc

Main
range of product	Modicon TM3
product or component type	Analog input module
range compatibility	Modicon M221 Modicon M241 Modicon M251 Modicon M262
analogue input number	4
analogue input type	current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V

Complementary
analogue input resolution	12 bits 11 bits + sign
permissible continuous overload	13 V, analogue input type: voltage 40 mA, analogue input type: current
input impedance	<= 50 Ohm current >= 1 MOhm voltage
LSB value	2.44 mV 0...10 Vvoltage 4.88 mV - 10...10 Vvoltage 4.88 µA 0...20 mAcurrent 3.91 µA 4...20 mAcurrent
conversion time	1 ms + 1 ms per channel + 1 controller cycle time
sampling duration	1 ms
absolute accuracy error	+/- 0.1 % of full scale at 25 °C +/- 1 % of full scale
temperature drift	+/- 0.006 %FS/°C
repeat accuracy	+/-0.5 %FS
non-linearity	+/- 0.2 %FS
cross talk	<= 1 LSB
[Us] rated supply voltage	24 V DC
supply voltage limits	20.4…28.8 V
type of cable	Twisted shielded pairs cable <30 m for input circuit
current consumption	35 mA at 5 V DC via bus connector no load 45 mA at 5 V DC via bus connector full load 30 mA at 24 V DC via external supply
local signalling	1 LED (green)PWR:
electrical connection	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
insulation	Between input and supply at 1500 V AC Between input and internal logic at 500 V AC
marking	CE
surge withstand	1 kV power supply common mode conforming to EN/IEC 61000-4-5 0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	70 mm
width	23.6 mm
net weight	0.11 kg

Environment
standards	EN/IEC 61131-2 EN/IEC 61010-2-201
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields	30 A/m conforming to EN/IEC 61000-4-8
resistance to fast transients	1 kV (I/O) conforming to EN/IEC 61000-4-4
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
immunity to microbreaks	10 ms
ambient air temperature for operation	-10…55 °C horizontal installation -10…35 °C vertical installation
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20
pollution degree	2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail
shock resistance	15 gn for 11 ms

Packing Units
Package 1 Weight	205.000 g
Package 1 Height	75.000 mm
Package 1 width	105.000 mm
Package 1 Length	125.000 mm

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free	Yes
