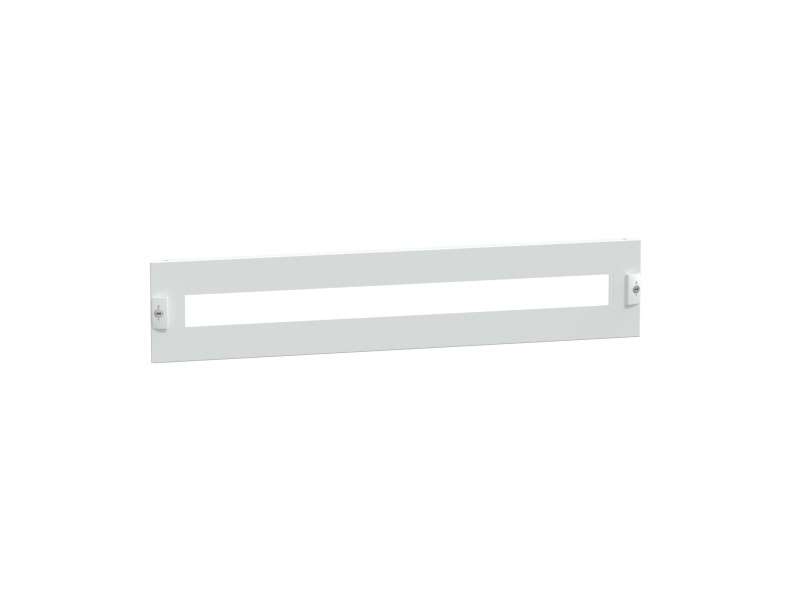

Schneider Electric Modularna poklopna ploča Š850 4M; LVS03216
Front plate, PrismaSeT G, for modular device, 3M, W850...
VAT-exclusive price: 5.035,00 |
VAT-inclusive price: 6.042,00 |
Front plate, PrismaSeT G, for modular device, 3M, W850
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Type of front plate | Modular |
| Installed device |
Acti 9: fixed modular device <= 40 A Multi9: fixed modular device <= 40 A |
| Enclosure/cubicle description | Floor-standing enclosure - width 850 mm |
|---|---|
| Connection position | Direct connection |
| 9 mm pitches | 72 |
| Number of 18 mm modules per row | 36 |
| Number of vertical modules [50 mm] | 3 |
| Standards |
IEC 61439-1 IEC 61439-2 |
| Product certifications | ASTA |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 150 mm |
| Width | 850 mm |
| Product weight | 0.88 kg |
| Quantity per set | Set of 1 |
| functional unit |
850 mm PrismaSeT G floor-standing enclosure Acti 9 modular device <= 40 A fixed 72 direct 3 850 mm PrismaSeT G floor-standing enclosure Multi9 modular device <= 40 A fixed 72 direct 3 |
| IP degree of protection | IP30 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3 cm |
| Package 1 Width | 16 cm |
| Package 1 Length | 75 cm |
| Package 1 Weight | 908 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 13 cm |
| Package 2 Width | 17 cm |
| Package 2 Length | 76 cm |
| Package 2 Weight | 7.539 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 264 |
| Package 3 Height | 80 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 260 kg |
