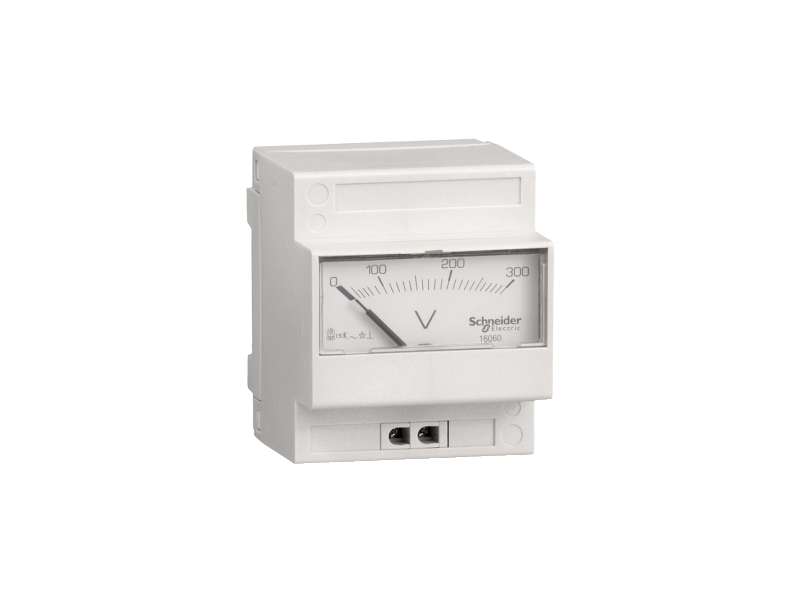

Schneider Electric Modularni analogni voltmetar iVLT - 0..300 V;16060

modular analog voltmeter iVLT - 0..300 V...

Brand: Schneider Electric
Product Code: 16060
Availability: Check availability

VAT-exclusive price: 9.192,00

VAT-inclusive price: 11.030,40

Qnt:

Description
Specification

modular analog voltmeter iVLT - 0..300 V

Main
range	Acti 9
device short name	IVLT
product or component type	Voltmeter
range compatibility	Prisma P door Prisma G door
scale	0-300 V
technology type	Ferromagnetic
scale type	Pseudo-linear scale over 90°
mounting support	DIN rail

Complementary
type of measurement	Voltage
accuracy class	Class 1.5
power consumption in VA	2.5 VA
power consumption in VA	2.5 VA
overload withstand	1.2 Un, permanently 2 Un, 5 s
9 mm pitches	8
width	70 mm
height	83 mm
depth	66 mm
temperature drift	+/- 0.03 %/°C
connections - terminals	Tunnel type terminalrigid 1.5…6 mm²

Environment
standards	IEC 61010-1 IEC 61000-4 IEC 60051-1
ambient air temperature for operation	-25…50 °C
reference temperature	23 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	165.0 g
Package 1 Height	7.8 cm
Package 1 width	7.7 cm
Package 1 Length	9.3 cm
Unit Type of Package 2	S03
Number of Units in Package 2	45
Package 2 Weight	7.912 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
