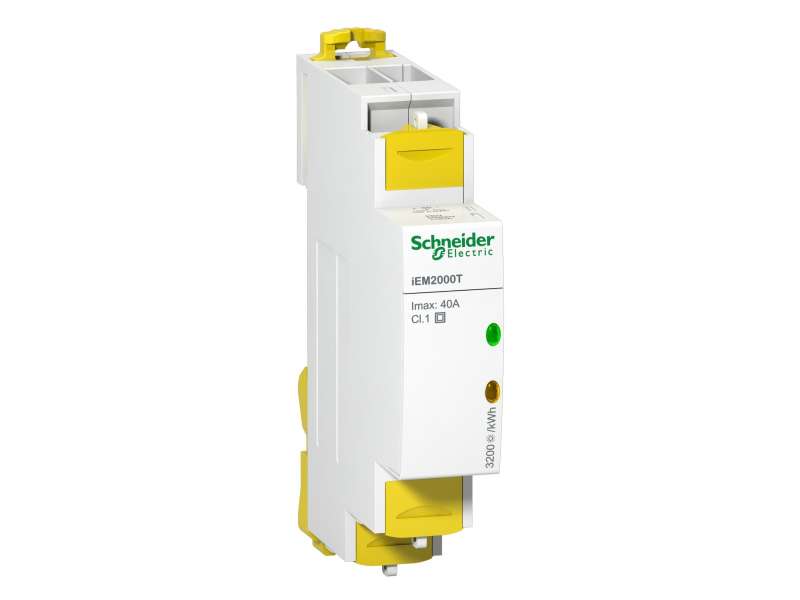

Schneider Electric Modularni uređaj za merenje el. energije 1 faza iEM2000T - 230V - 40A bez displ.
modular single phase power meter iEM2000T - 230V - 40A without display...
VAT-exclusive price: 9.007,00 |
VAT-inclusive price: 10.808,40 |
modular single phase power meter iEM2000T - 230V - 40A without display
| range | Acti 9 |
|---|---|
| family | Acti 9 iEM2000 |
| device short name | IEM2000T |
| Product or component type | Energy meter |
| poles description | 1P + N |
|---|---|
| type of measurement | Active power |
| Device application | Sub billing |
| accuracy class | Class 1 active energy conforming to IEC 62053-21 |
| Input type | Direct input |
| Rated current | 40 A |
| rated voltage | 230 V +/- 20 % |
| Network frequency |
60 Hz 50 Hz |
| frequency measurement range | 48…62 Hz |
| Technology type | Electronic |
| Display type | Without display |
| sampling rate | 32 samples/cycle |
| measurement current | 0…40 A |
| display digits | 0 |
| maximum value measured | 999999.9 kWh |
| communication port protocol | - |
| communication port support | - |
| local signalling |
Green indicator light: power ON Yellow indicator light: metering and activity 3200 p/kWh |
| Digital inputs | 0 |
| Digital outputs | 1 pulse |
| output voltage | 5...35 V DC@20 mA |
| impulse duration | 120 ms |
| maximum power consumption in VA | 10 VA |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| connections - terminals |
Power circuit: tunnel type terminals (bottom) 1 10 mm² cable(s) Remote transfer: tunnel type terminals (top) 1 4 mm² cable(s) |
| tightening torque |
Power circuit: 1.2 N.m Remote transfer: 0.8 N.m |
| standards |
IEC 61557-12 IEC 62053-21 |
| product certifications | CE |
| IP degree of protection | IP40 conforming to IEC 60529 |
|---|---|
| ambient air temperature for operation |
-20…70 °C -20…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| relative humidity | 0…95 % at 55 °C |
| Colour | White |
| 9 mm pitches | 2 |
| Width | 18 mm |
| Height | 95 mm |
| Depth | 67 mm |
| Net weight | 0.073 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 112 g |
| Package 1 Height | 3.5 cm |
| Package 1 width | 8 cm |
| Package 1 Length | 10 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 38 |
| Package 2 Weight | 4.982 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| Warranty | 18 months |
|---|
-
Acti 9 iEM2000 A9MEM2000T
