Schneider Electric Montažna ploča ISFT 160 vertikalni ISFT 100N Š600; LVS03126
Mounting plate, PrismaSeT G, for FuPacT ISFT100N, vertical fixed, 8M, W600mm...
VAT-exclusive price: 4.681,00 |
VAT-inclusive price: 5.617,20 |

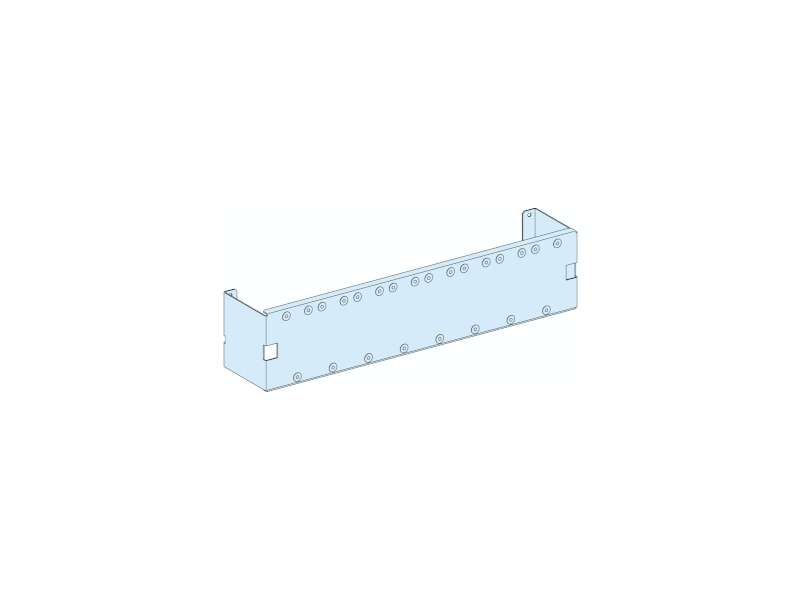

Mounting plate, PrismaSeT G, for FuPacT ISFT100N, vertical fixed, 8M, W600mm
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| installation description |
Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm |
| Installed device | FuPact: fixed ISFT100N - control: fuse carriers handle - vertical installation |
| Poles description | 8 x 3P: fixed ISFT100N vertical installation |
| Number of vertical modules [50 mm] |
8 module(s): ISFT100N, direct in 600 mm Widefloor-standing enclosure 8 module(s): ISFT100N, direct in 600 mm Widewall-mounted enclosure |
| Standards | IEC 61439-2 |
| Product certifications | ASTA |
| Material | Sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| Width | 600 mm |
| Height | 100 mm |
| Depth | 94 mm |
| Product weight | 1.15 kg |
| Functional unit |
600 mm PrismaSeT G floor-standing enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 8 direct 8 175 mm 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT100N fixed fuse carriers handle vertical 3P 8 direct 8 175 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 10.8 cm |
| Package 1 Length | 47.1 cm |
| Package 1 Weight | 1.218 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 6.676 kg |
