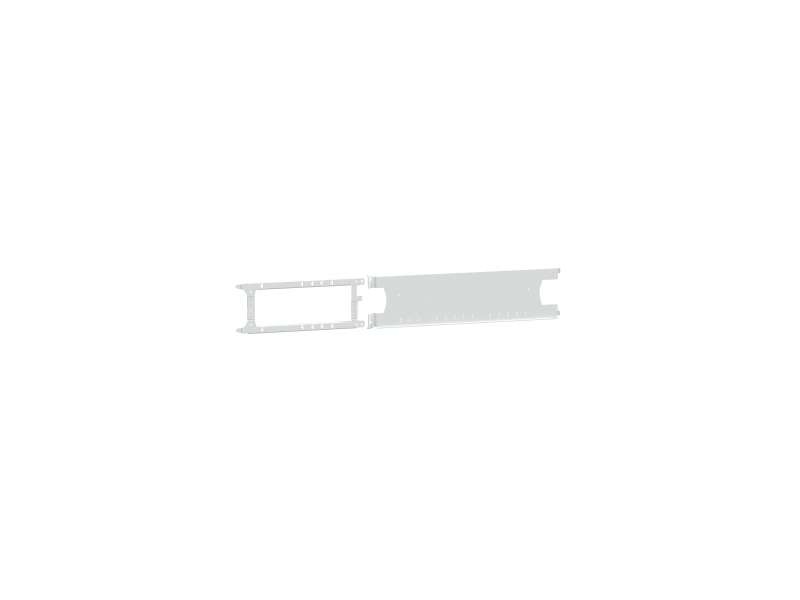

Schneider Electric Montažna ploča NSXm+FC 3/4P 160A VERT.L651; LVS03416
Mounting plate, PrismaSeT P, for NSXm+FC 160A 3P/4P, vertical toggle/direct rotary handle, 5M, W650mm...
VAT-exclusive price: 22.948,00 |
VAT-inclusive price: 27.537,60 |
Mounting plate, PrismaSeT P, for NSXm+FC 160A 3P/4P, vertical toggle/direct rotary handle, 5M, W650mm
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility |
PrismaSeT (PrismaSeT P) cubicle Linergy (Linergy FC) device feeder ComPact (ComPact NSXm) circuit breaker |
| installation description | Cubicle - width 650 mm depth 400 mm |
| Installed device |
ComPact: NSXm without earth leakage protection - control: toggle ComPact: NSXm without earth leakage protection - control: direct rotary handle ComPact: NSXm integrated earth leakage protection - control: toggle ComPact: NSXm integrated earth leakage protection - control: direct rotary handle |
| Poles description |
5 x 3P: fixed NSXm vertical installation 4 x 4P: fixed NSXm vertical installation |
| Number of vertical modules [50 mm] |
5 module(s): NSXm without earth leakage protection , Linergy FC 5 module(s): NSXm integrated earth leakage protection , Linergy FC |
| Standards | IEC 61439-2 |
| Product certifications | ASTA |
| Material | Sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 580 mm |
| Height | 154 mm |
| Depth | 23 mm |
| Net weight | 2.3 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3 cm |
| Package 1 Width | 15 cm |
| Package 1 Length | 58 cm |
| Package 1 Weight | 2.134 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 9.288 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 72 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 87 kg |
