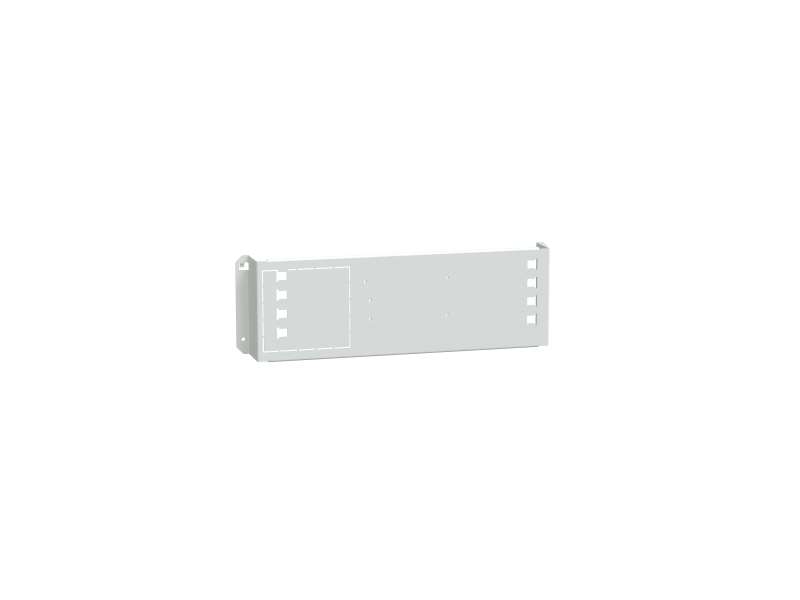

Schneider Electric Montažna ploča NSXm/VIGI/SDx horizontalna zakretna ručica Š600; LVS03021
Mounting plate, PrismaSeT G, for NSXm/Vigi/SDx 160A, horizontal fixed, rotary handle, 3M, W600/W850mm...
VAT-exclusive price: 2.486,00 |
VAT-inclusive price: 2.983,20 |
Mounting plate, PrismaSeT G, for NSXm/Vigi/SDx 160A, horizontal fixed, rotary handle, 3M, W600/W850mm
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| installation description |
Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing enclosure - width 850 mm Floor-standing enclosure + duct - width 600 + 300 mm Wall-mounted enclosure + duct - width 600 + 300 mm |
| Mounting plate description | Dedicated |
| Installed device | ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation |
| Poles description | 1 x 3P or 4P: fixed NSXm horizontal installation |
| Number of vertical modules [50 mm] |
3 module(s): NSXm without earth leakage protection , direct in 600 mm Widefloor-standing enclosure 3 module(s): NSXm without earth leakage protection , direct in 600 mm Widewall-mounted enclosure 3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widefloor-standing enclosure + duct 3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widewall-mounted enclosure + duct 3 module(s): NSXm without earth leakage protection , direct in 850 mm Widefloor-standing enclosure |
| Standards | IEC 61439-2 |
| Product certifications | ASTA |
| Material | Sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 470 mm |
| Height | 150 mm |
| Functional unit |
600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 14.3 cm |
| Package 1 Length | 47 cm |
| Package 1 Weight | 994 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 16.714 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 128 |
| Package 3 Height | 72 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 142 kg |
