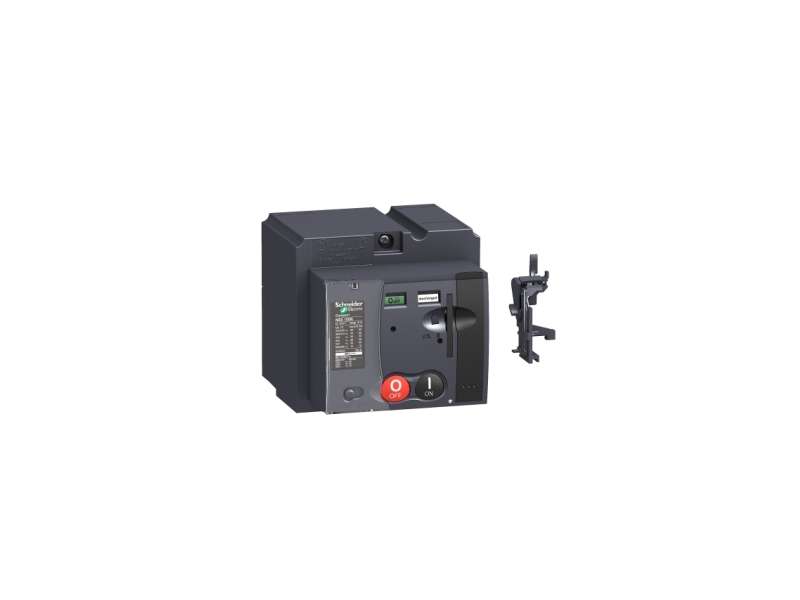

Schneider Electric Motorni pogon - MT100/160 - SDE adapter - 110..130 V AC 50/60Hz;LV429433
Standard motor mechanism module MT100/160, ComPacT NSX100/160, 110/130VAC 50/60Hz...
VAT-exclusive price: 27.967,00 |
VAT-inclusive price: 33.560,40 |
Standard motor mechanism module MT100/160, ComPacT NSX100/160, 110/130VAC 50/60Hz
| device short name | MT250 |
|---|---|
| product or component type | Motor mechanism |
| device application | Automatic spring charging |
| range compatibility |
ComPacT NSX100 new generation ComPacT NSX160 new generation ComPact NSX100 ComPact NSX160 ComPacT NSX DC new generation NSX100 DC ComPacT NSX DC new generation NSX160 DC Compact NSX100 DC Compact NSX160 DC PowerPact Multistandard EasyPact CVS250 PowerPact J PowerPact H |
| control type | Standard |
| [Uc] control circuit voltage | 110...130 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current |
100 A 160 A |
| control signal type |
Maintained Impulse |
|---|---|
| circuit breaker response time |
< 700 ms open < 80 ms closed |
| maximum operating frequency | 4 per minute |
| maximum power consumption in VA |
500 VA closing 500 VA opening |
| provided equipment | SDE adaptor |
| locking options description |
Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.386 kg |
| Package 1 Height | 12.0 cm |
| Package 1 width | 10.5 cm |
| Package 1 Length | 17.3 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 21.661 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
| device short name | MT250 |
|---|---|
| product or component type | Motor mechanism |
| device application | Automatic spring charging |
| range compatibility |
ComPacT NSX100 new generation ComPacT NSX160 new generation ComPact NSX100 ComPact NSX160 ComPacT NSX DC new generation NSX100 DC ComPacT NSX DC new generation NSX160 DC Compact NSX100 DC Compact NSX160 DC PowerPact Multistandard EasyPact CVS250 PowerPact J PowerPact H |
| control type | Standard |
| [Uc] control circuit voltage | 110...130 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current |
100 A 160 A |
| control signal type |
Maintained Impulse |
|---|---|
| circuit breaker response time |
< 700 ms open < 80 ms closed |
| maximum operating frequency | 4 per minute |
| maximum power consumption in VA |
500 VA closing 500 VA opening |
| provided equipment | SDE adaptor |
| locking options description |
Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.386 kg |
| Package 1 Height | 12.0 cm |
| Package 1 width | 10.5 cm |
| Package 1 Length | 17.3 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 21.661 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
