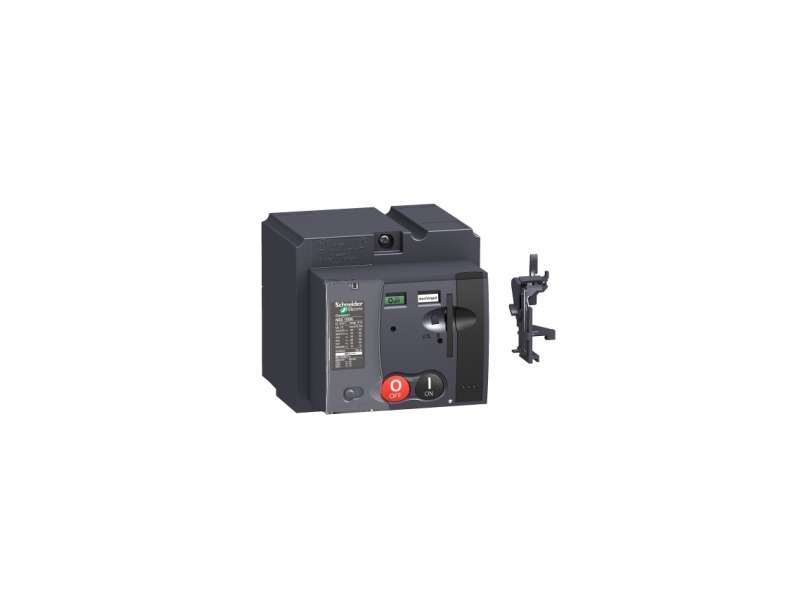

Schneider Electric Motorni pogon - MT250 - SDE adapter - 110..130 V AC 50/60Hz;LV431540
Standard motor mechanism module MT250, ComPacT NSX250, 110/130VAC 50/60Hz...
VAT-exclusive price: 39.018,00 |
VAT-inclusive price: 46.821,60 |
Standard motor mechanism module MT250, ComPacT NSX250, 110/130VAC 50/60Hz
| device short name | MT250 |
|---|---|
| product or component type | Motor mechanism |
| device application | Automatic spring charging |
| range compatibility |
ComPacT NSX250 new generation ComPact NSX250 ComPacT NSX DC new generation NSX250 DC Compact NSX250 DC PowerPact Multistandard EasyPact CVS250 PowerPact J PowerPact H |
| control type | Standard |
| [Uc] control circuit voltage | 110...130 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current | 250 A |
| control signal type |
Impulse Maintained |
|---|---|
| circuit breaker response time |
< 700 ms open < 80 ms closed |
| maximum operating frequency | 4 per minute |
| maximum power consumption in VA |
500 VA closing 500 VA opening |
| provided equipment | SDE adaptor |
| locking options description |
Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.39 kg |
| Package 1 Height | 10.5 cm |
| Package 1 width | 12.0 cm |
| Package 1 Length | 17.0 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Weight | 21.707 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
