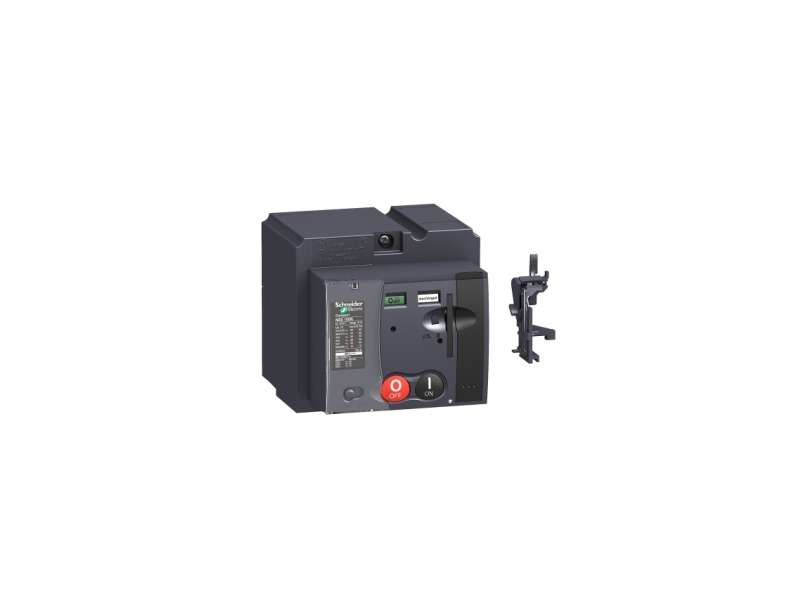

Schneider Electric Motorni pogon - MT250 - SDE adapter - 24..30 V DC;LV431543

Standard motor mechanism module MT250, ComPacT NSX250, 24/30VDC...

Brand: Schneider Electric
Product Code: LV431543
Availability: Check availability

VAT-exclusive price: 46.823,00

VAT-inclusive price: 56.187,60

Qnt:

Description
Specification

Standard motor mechanism module MT250, ComPacT NSX250, 24/30VDC

Main
device short name	MT250
product or component type	Motor mechanism
device application	Automatic spring charging
range compatibility	ComPacT NSX250 new generation ComPact NSX250 ComPacT NSX DC new generation NSX250 DC Compact NSX250 DC PowerPact Multistandard EasyPact CVS250 PowerPact J PowerPact H
control type	Standard
[Uc] control circuit voltage	24...30 V DC
circuit breaker mounting mode	Fixed
circuit breaker frame rated current	250 A

Complementary
control signal type	Maintained Impulse
circuit breaker response time	< 700 ms open < 80 ms closed
maximum operating frequency	4 per minute
maximum power consumption in VA	500 VA closing 500 VA opening
provided equipment	SDE adaptor
locking options description	1 to 3 padlocks Ø 5 to Ø 8 Padlocking in OFF position

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.386 kg
Package 1 Height	12.0 cm
Package 1 width	10.5 cm
Package 1 Length	17.4 cm
Unit Type of Package 2	S04
Number of Units in Package 2	15
Package 2 Weight	21.451 kg
Package 2 Height	30.0 cm
Package 2 width	40.0 cm
Package 2 Length	60.0 cm

Contractual warranty
Warranty	18 months
