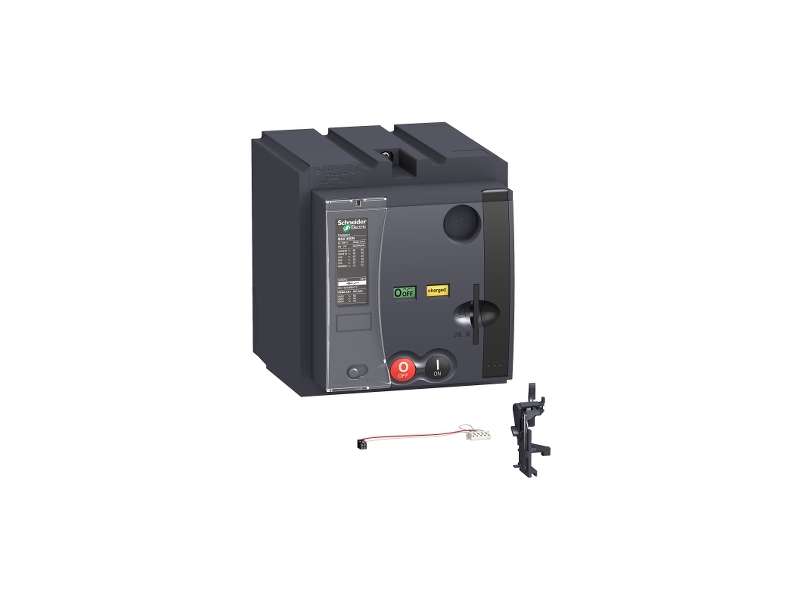

Schneider Electric Motorni pogon sa komunikacijom- MT400/630 - SDE adapter - 220..240 V 50/60Hz;LV432652
Communicating motor mechanism module MTc 400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz...
VAT-exclusive price: 78.303,00 |
VAT-inclusive price: 93.963,60 |
Communicating motor mechanism module MTc 400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz
| device short name | MT400/630 |
|---|---|
| product or component type | Motor mechanism |
| device application | Automatic spring charging |
| range compatibility |
ComPacT NSX400 new generation ComPacT NSX630 new generation ComPact NSX400 ComPact NSX630 ComPacT NSX DC new generation NSX400 DC ComPacT NSX DC new generation NSX630 DC Compact NSX400 DC Compact NSX630 DC PowerPact Multistandard EasyPact CVS400 EasyPact CVS630 PowerPact L |
| control type | Communicating |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current |
630 A 400 A |
| control signal type |
Maintained Impulse |
|---|---|
| circuit breaker response time |
< 700 ms open < 80 ms closed |
| maximum operating frequency | 4 per minute |
| maximum power consumption in VA |
500 VA closing 500 VA opening |
| locking options description |
1 to 3 padlocks Ø 5 to Ø 8 Padlocking in OFF position |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.142 kg |
| Package 1 Height | 17.0 cm |
| Package 1 width | 17.0 cm |
| Package 1 Length | 20.0 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 19.714 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
