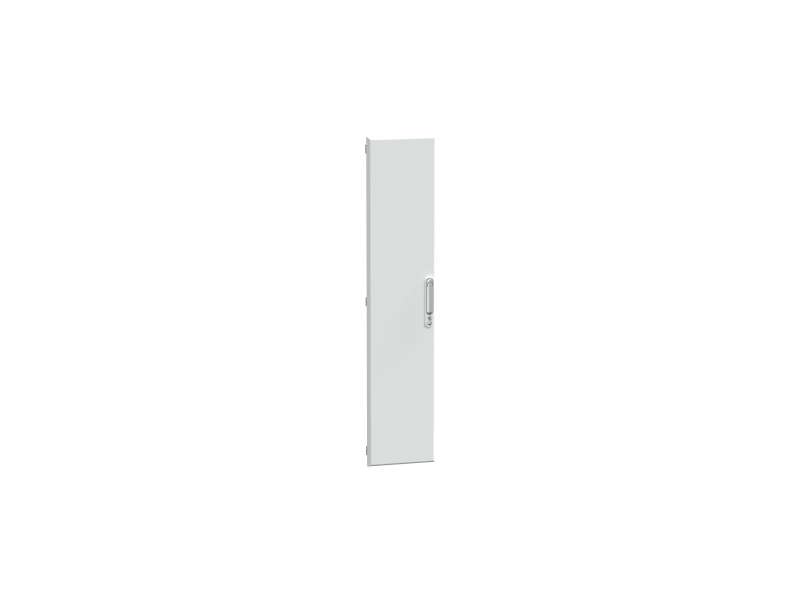

Schneider Electric Neprovidna vrata kablovskog polja Š300 36M Prisma G IP40; LVS08285
PLAIN DUCT DOOR W300 36M PRISMA G IP30...
VAT-exclusive price: 15.599,00 |
VAT-inclusive price: 18.718,80 |
PLAIN DUCT DOOR W300 36M PRISMA G IP30
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT G) duct |
| Provided equipment |
Door handle keylock (key 405) other keylock and insert to be ordered separately 3 hinge |
| type of door | Plain |
| IP degree of protection |
IP43 with door, canopy and IP43 gasket IP30 without door IP40 with door IP41 with door and canopy |
| installation description | Floor-standing duct - width 300 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 3 |
| door opening angle | 130 ° |
| Number of vertical modules [50 mm] | 36 |
| Enclosure material |
Handle: polyamide Cover frame: treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 1830 mm |
| Width | 300 mm |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| IK degree of protection | IK08 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-1 IEC 61439-2 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 33.5 cm |
| Package 1 Length | 190.0 cm |
| Package 1 Weight | 8.64 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 98.0 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 202.0 cm |
| Package 2 Weight | 339.0 kg |
