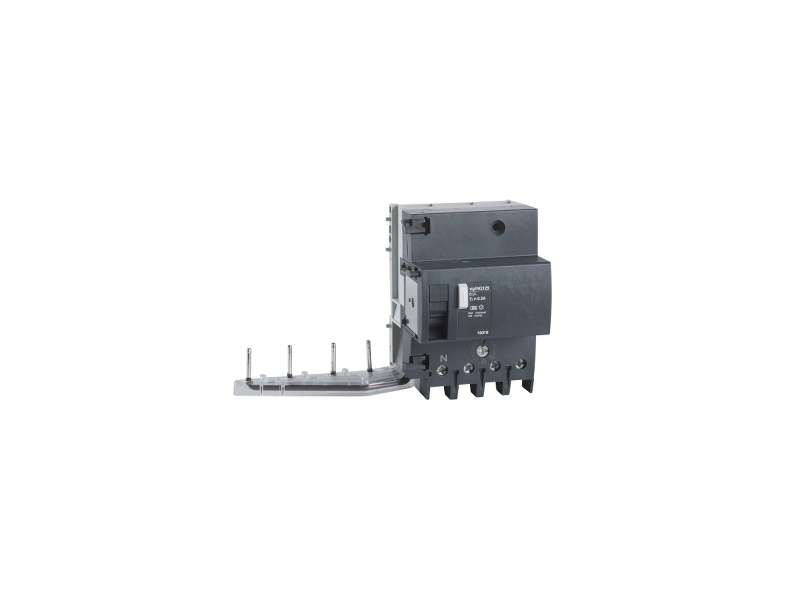

Schneider Electric NG125 - dodatak diferencijalne zaštite - Vigi NG125 - 4P - 63A - 30mA;19004

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 30mA...

Brand: Schneider Electric
Product Code: 19004
Availability: Check availability

Price on request

Description
Specification

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 30mA

Main
product or component type	Add-on residual current devices
device short name	Vigi NG125
poles description	4P
[In] rated current	63 A
network type	AC
earth-leakage sensitivity	30 mA
earth-leakage protection time delay	Instantaneous
earth-leakage protection class	Type AC

Complementary
device location in system	Outgoer
network frequency	50/60 Hz
[Ue] rated operational voltage	230...415 V AC 50/60 Hz
residual current tripping technology	Voltage independent
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
mounting support	35 mm symmetrical DIN rail
electrical connection to mcb	By screws
9 mm pitches	9
height	118 mm
width	189 mm
depth	81 mm
net weight	0.45 kg
electrical durability	10000 cycles conforming to IEC 60947-2
connections - terminals	Tunnel type terminals 1…35 mm² flexible Tunnel type terminals 1.5…50 mm² rigid
wire stripping length	20 mm
tightening torque	3.5 N.m

Environment
standards	IEC 60947-2
IP degree of protection	IP40 conforming to IEC 60947-2
pollution degree	3 conforming to IEC 60947-2
electromagnetic compatibility	8/20 µs impulse withstand, 3000 A conforming to IEC 60947-2
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 °C
operating altitude	2000 m

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	26.0 cm
Number of Units in Package 1	1
Package 2 Width	30.0 cm
Package 2 Height	30.0 cm
Package 2 Weight	4.82 kg
Package 1 Width	13.5 cm
Package 1 Height	9.5 cm
Package 1 Weight	541.0 g
Number of Units in Package 2	8
Unit Type of Package 2	S03
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
