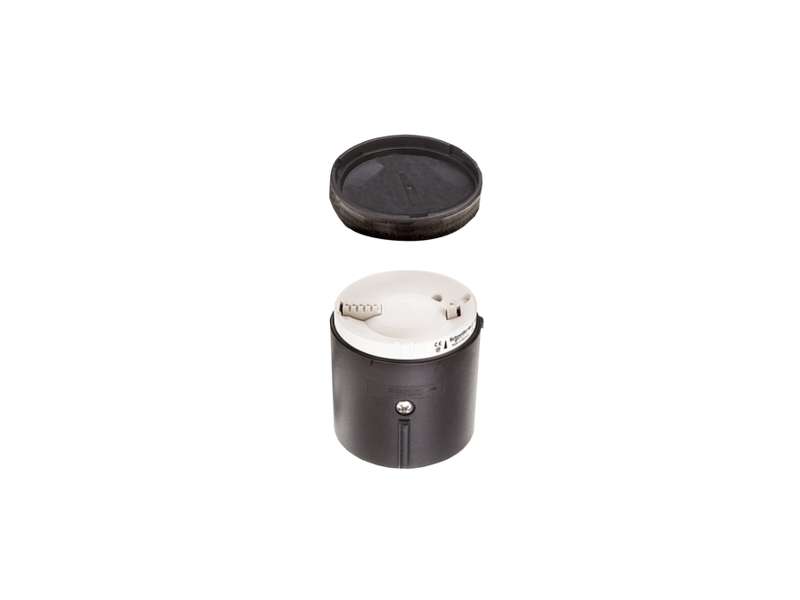

Schneider Electric Ø 70 mm bazna jedinica + poklopac - sa AS-i priključkom - crna;XVBC21B

Schneider Electric Ø 70 mm bazna jedinica + poklopac - sa AS-i priključkom - crna;XVBC21B

Harmony XVB, Base unit with cover for modular tower lights, plastic, black, Ø70, bottom entry, cable 1m with M12 connector, AS-i connection...

Brand: Schneider Electric
Product Code: XVBC21B
Availability: Check availability
Price on request

Harmony XVB, Base unit with cover for modular tower lights, plastic, black, Ø70, bottom entry, cable 1m with M12 connector, AS-i connection


Main
range of product Harmony XVB Universal
product or component type Base unit with cover
component name XVBC
Complementary
range compatibility AS-Interface cabling system
material Glass reinforced polyamide: base unit
Polycarbonate: cover unit
mounting diameter 70 mm
[Us] rated supply voltage External: 19.2...30 V
AS-Interface line: 24...31.6 V
current consumption 250 mA under load via AS-Interface line
30 mA under load external
30 mA no load
actuator sensor interface profile [AS-i] S.7.F
electrical connection 1 remote connector M12, cable length: 1 m for AS-Interface line
cable entry Side entry
assembly style Customer assembly, up to 5 units
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
terminals description ISO n°1 (COM-4)PW
(COM-2)PW
(COM-3)PW
(COM-1)PW
(GND)GROUND
(COM-5)PW
net weight 0.3 kg
Environment
product certifications CSA
EAC
AS-Interface No 25701
standards EN/IEC 60947-5-1
protective treatment TC
ambient air temperature for storage -20…70 °C
ambient air temperature for operation -10…50 °C
shock resistance 25 gn conforming to IEC 60068-2-27
vibration resistance 5 gn conforming to IEC 60068-2-6
overvoltage category Class I conforming to IEC 60536
IP degree of protection IP65 conforming to IEC 60529
IP65 conforming to NF C 20-010
NEMA degree of protection Type 4X conforming to UL (indoor)
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 276.0 g
Package 1 Height 9.4 cm
Package 1 width 15.8 cm
Package 1 Length 9.2 cm
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Weight 5.462 kg
Package 2 Height 30.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm

Contractual warranty
Warranty 18 months

Main
range of product Harmony XVB Universal
product or component type Base unit with cover
component name XVBC
Complementary
range compatibility AS-Interface cabling system
material Glass reinforced polyamide: base unit
Polycarbonate: cover unit
mounting diameter 70 mm
[Us] rated supply voltage External: 19.2...30 V
AS-Interface line: 24...31.6 V
current consumption 250 mA under load via AS-Interface line
30 mA under load external
30 mA no load
actuator sensor interface profile [AS-i] S.7.F
electrical connection 1 remote connector M12, cable length: 1 m for AS-Interface line
cable entry Side entry
assembly style Customer assembly, up to 5 units
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
terminals description ISO n°1 (COM-4)PW
(COM-2)PW
(COM-3)PW
(COM-1)PW
(GND)GROUND
(COM-5)PW
net weight 0.3 kg
Environment
product certifications CSA
EAC
AS-Interface No 25701
standards EN/IEC 60947-5-1
protective treatment TC
ambient air temperature for storage -20…70 °C
ambient air temperature for operation -10…50 °C
shock resistance 25 gn conforming to IEC 60068-2-27
vibration resistance 5 gn conforming to IEC 60068-2-6
overvoltage category Class I conforming to IEC 60536
IP degree of protection IP65 conforming to IEC 60529
IP65 conforming to NF C 20-010
NEMA degree of protection Type 4X conforming to UL (indoor)
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 276.0 g
Package 1 Height 9.4 cm
Package 1 width 15.8 cm
Package 1 Length 9.2 cm
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Weight 5.462 kg
Package 2 Height 30.0 cm
Package 2 width 30.0 cm
Package 2 Length 40.0 cm

Contractual warranty
Warranty 18 months
