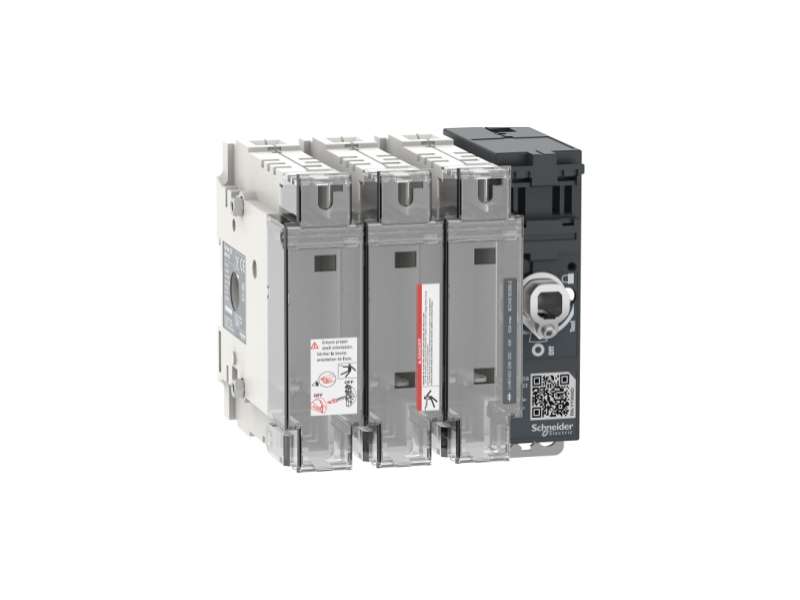

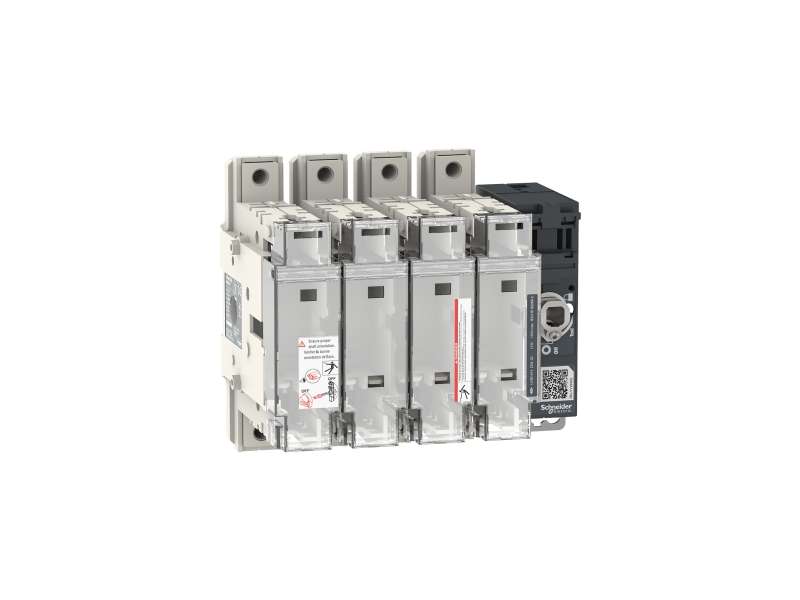

Schneider Electric Osigurač prekidačkog rastavljača, FuPacT GSD63, 63 A, 4 pola, tip osigurača DIN NH000, prednja i desna bočna kontrola;LV481404

Schneider Electric Osigurač prekidačkog rastavljača, FuPacT GSD63, 63 A, 4 pola, tip osigurača DIN NH000, prednja i desna bočna kontrola;LV481404

Switch disconnector fuse, FuPacT GSD63, 63 A, 4 poles, fuse type DIN NH000, front and right side control...

Brand: Schneider Electric
Product Code: LV481404
Availability: Check availability

VAT-exclusive price: 21.575,00

VAT-inclusive price: 25.890,00

Qnt:

Description
Specification

Switch disconnector fuse, FuPacT GSD63, 63 A, 4 poles, fuse type DIN NH000, front and right side control

Main
range	FuPacT
product name	FuPacT GS
device short name	GSD63
product or component type	Switch-disconnector-fuse
device application	Protection
poles description	4P
protected poles description	4t
contacts type and composition	4 NO
[Ith] conventional free air thermal current	63 A (at 35 °C)
[Ie] rated operational current	63 A at 220/240 V AC-22A 63 A at 380/415 V AC-22A 63 A at 660/690 V AC-22A 63 A at 220/240 V AC-23A 63 A at 380/415 V AC-23A 63 A at 660/690 V AC-23A
fuse type	DIN
fuse size	NH000
network type	AC
network frequency	50/60 Hz

Complementary
type of operating handle	Direct frontal External frontal External right side
mounting support	Plate
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
rated operational power in W	30 kW at 380/400 V 55 kW at 660/690 V
breaking capacity	100 kA at 415 V (AC-23A)
mechanical durability	10000 cycles
electrical durability	1500 cycles AC-22A 1500 cycles AC-23A
connections - terminals	Power circuit: screw-clamp terminals10…25 mm²
tightening torque	Power circuit: 3.2 N.m

Environment
standards	IEC 60947-3
product certifications	CE CCC
IP degree of protection	IP20 conforming to IEC 60529 (with terminal cover)
ambient air temperature for operation	-20…70 °C
ambient air temperature for storage	-40…80 °C
fire resistance	850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1
height	162 mm
width	168 mm
depth	116 mm
net weight	1.3 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.609 kg
Package 1 Height	13.5 cm
Package 1 width	12.0 cm
Package 1 Length	19.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	3
Package 2 Weight	5.283 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
