Schneider Electric Ožičen konektor XZ - ravni ženski - 1/2''20 UNF - 3-pinski - kabl PUR 2m;XZCP1865L2

Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 2 m...

Brand: Schneider Electric
Product Code: XZCP1865L2
Availability: Check availability

VAT-exclusive price: 2.896,00

VAT-inclusive price: 3.475,20

Qnt:

Description
Specification

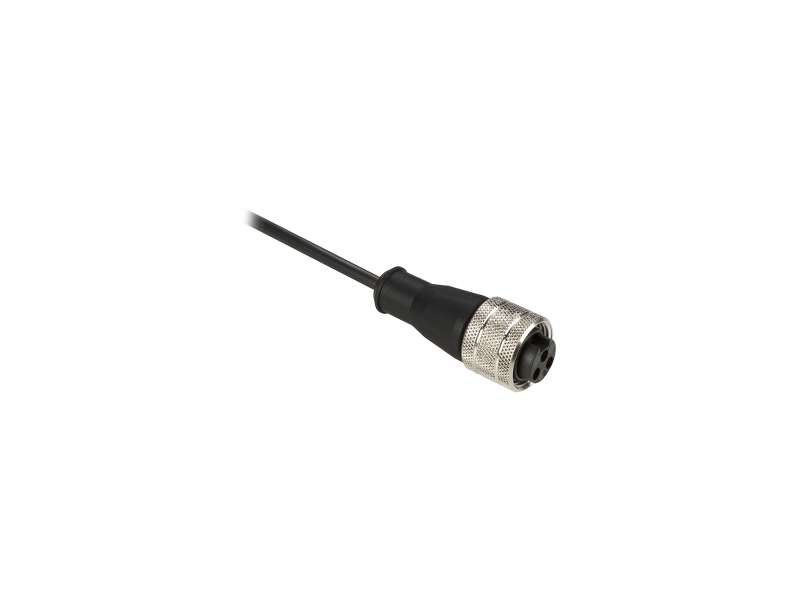

Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 2 m

Main
range of product	Telemecanique Cabling components
accessory / separate part category	Cabling accessory
Accessory / separate part type	Pre-wired connectors
series name	General purpose

Complementary
electrical connection	Straight female connector 1/2"20 UNF, 3 pins
cable connector fixing	Screw-on
collar material	Metal
status LED	Without
cable length	2 m
cable outer diameter	5.2 mm
cable composition	3 x 0.34 mm²
wire insulation material	PUR
[Ue] rated operational voltage	250 V AC 300 V DC
[In] rated current	4 A
contact resistance	5000 µOhm
minimum insulating resistance	1 GΩ
net weight	0.08 kg

Environment
IP degree of protection	IP67
product certifications	CULus
ambient air temperature for operation	-35…90 °C static -5…90 °C flexing
ambient air temperature for storage	-35…100 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	60.0 g
Package 1 Height	3.4 cm
Package 1 width	16.6 cm
Package 1 Length	16.6 cm
Unit Type of Package 2	S02
Number of Units in Package 2	40
Package 2 Weight	2.855 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Package 3 Height	15 cm

Contractual warranty
Warranty	18 months
